MODULAR FUEL FILTER
Customizable Input, Output & Filtration | E85 Compatible | Track-Proven Performance

The Precision Raceworks Modular Fuel Filter offers a fully customizable, high-performance fuel filtration solution designed for maximum flexibility and reliability. This complete kit includes everything you need to build your ideal inline fuel filter—select your preferred input cap, output cap, and filter element to match your fuel system's specific layout and performance goals.

Each component is precision CNC-machined from anodized aluminum for long-term durability and is fully compatible with all blends of pump gas and E85. The internal filter element is made in the USA and available in either 6 micron or 10 micron ratings depending on your filtration requirements.

Included in the kit is a universal billet mounting bracket to make installation clean and secure in any engine bay or underbody setup.

Modular Components – Choose Your Setup:

• Input Cap Options:

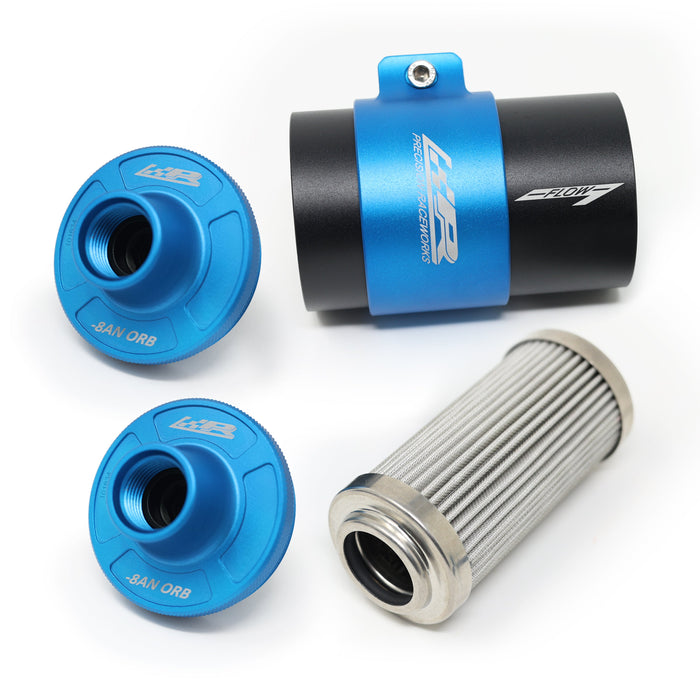

  – AN8 ORB Input

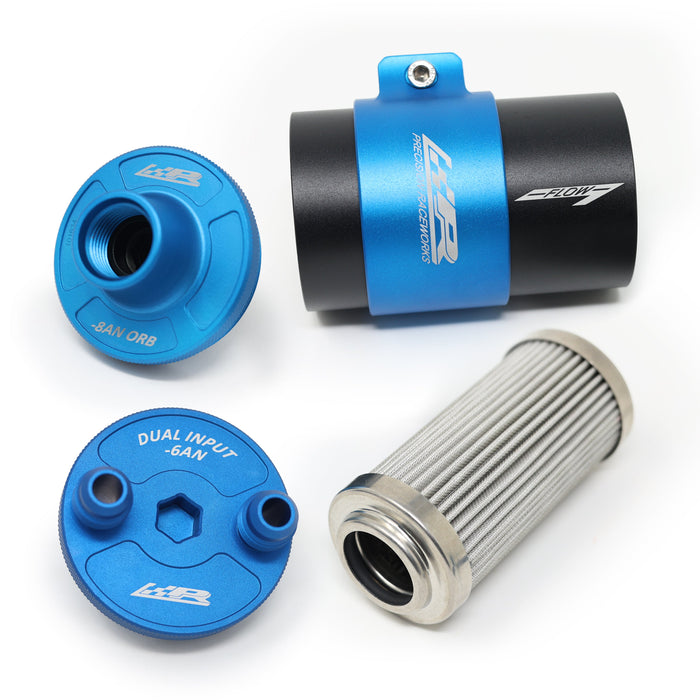

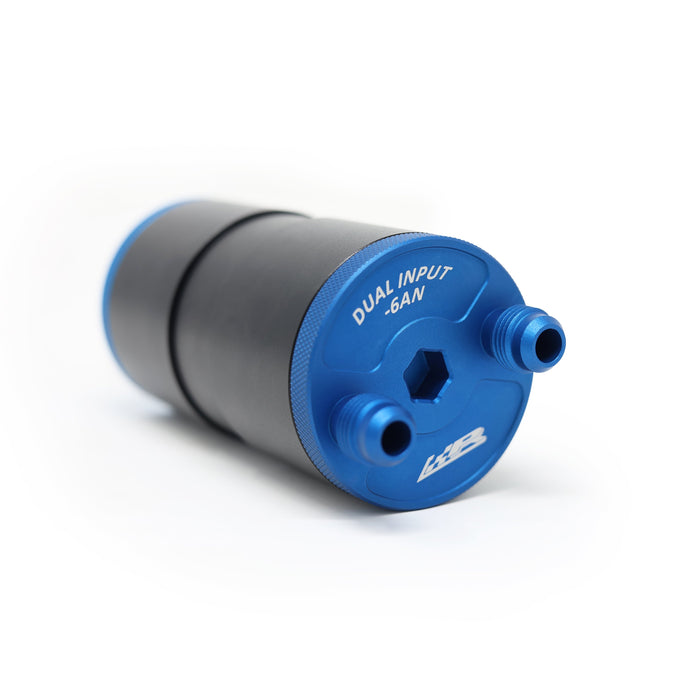

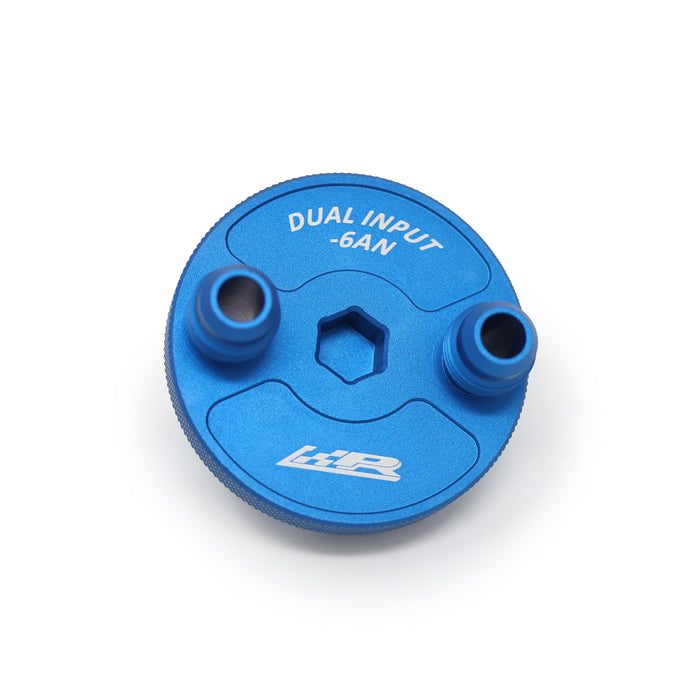

  – Dual AN6 Inputs

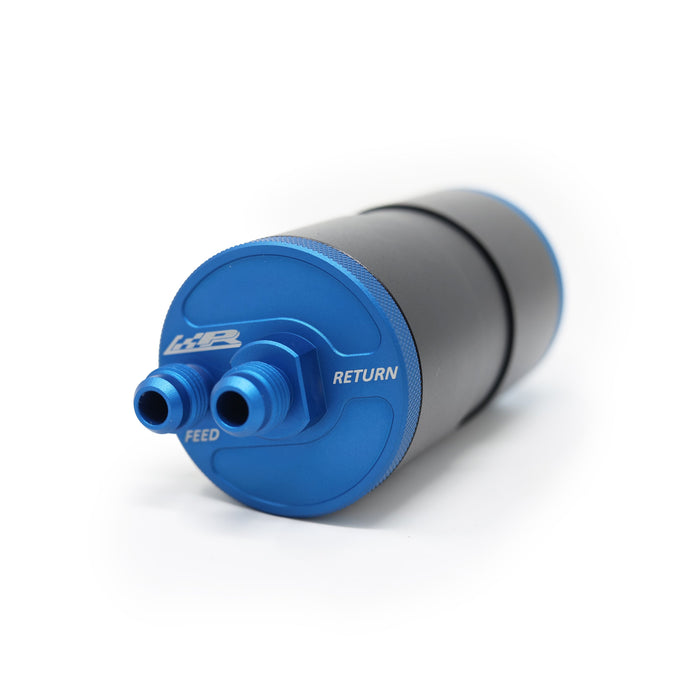

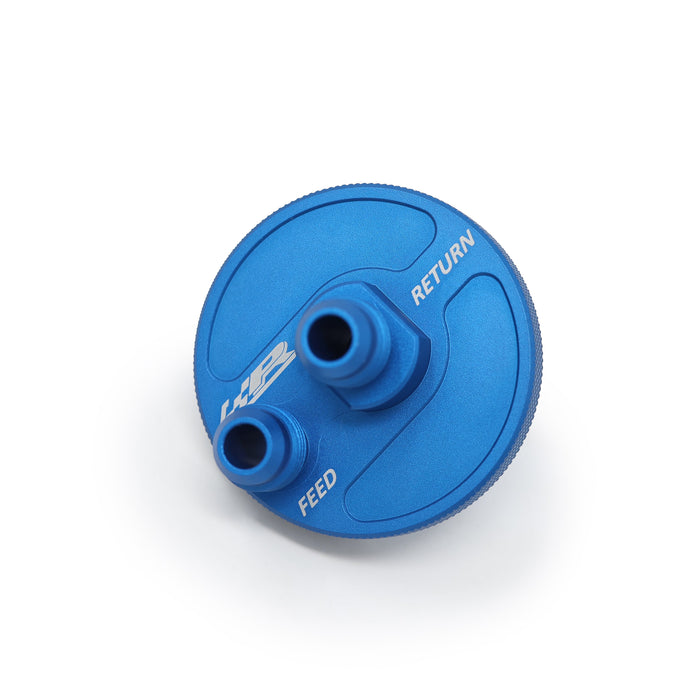

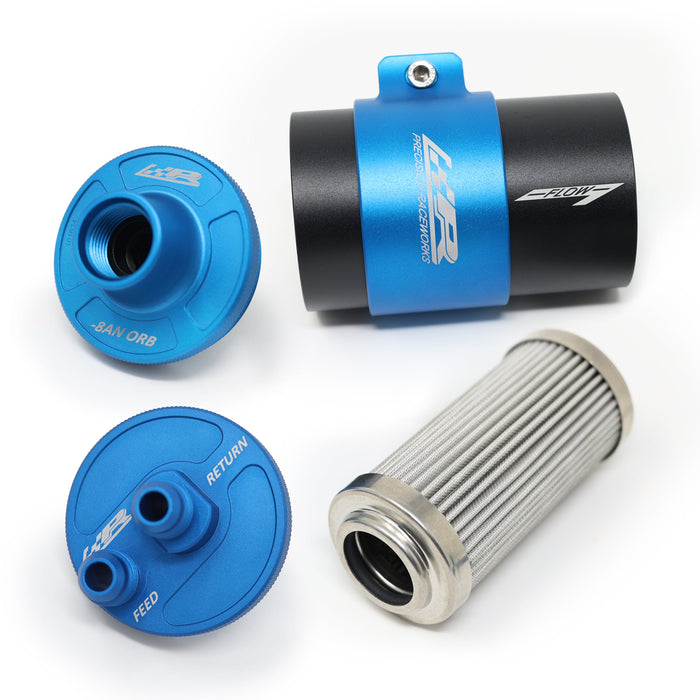

  – AN6 Input w/ Regulated AN6 Return (Includes 4, 5, or 6 BAR static regulator)
  – AN6 Input to AN6 Output (No Regulator)

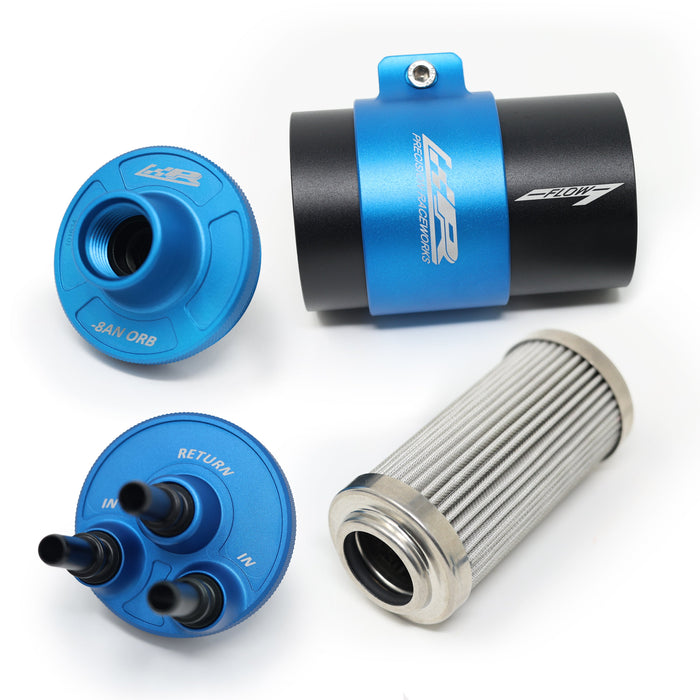

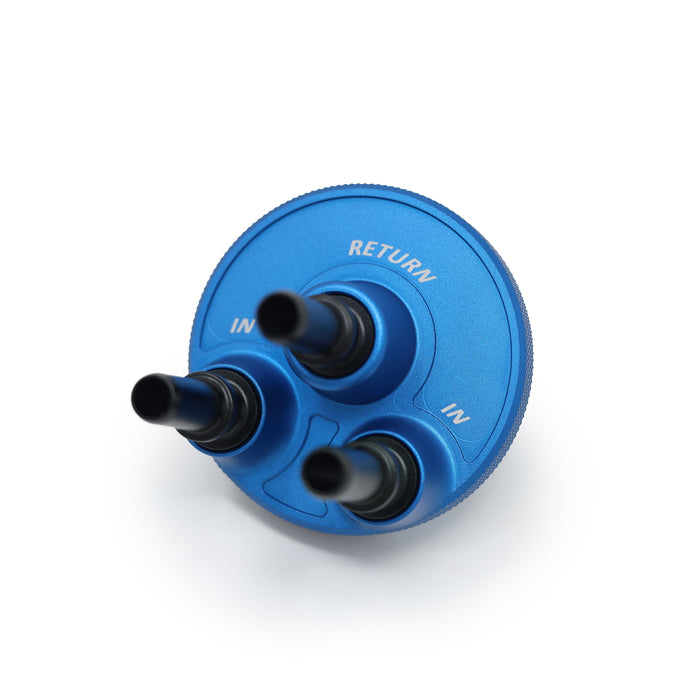

  – Dual 7.89mm Quick Connect Input w/ Regulated Return

• Output Cap Options:

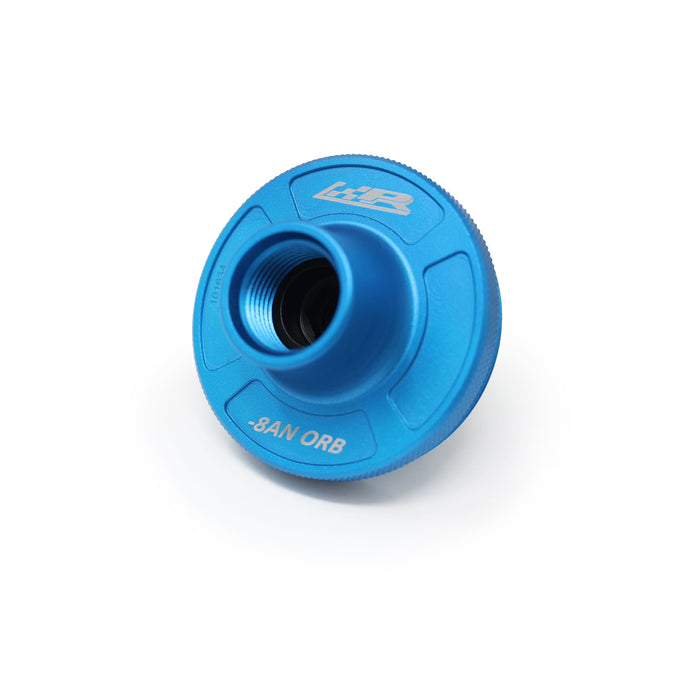

  – AN8 ORB Output
  – AN8 ORB Output w/ Integrated Check Valve
  – Flat Cap (No Output, for use with regulated input cap)

• Filter Element Options:
  – 6 Micron (Recommended for post-pump or pre-rail filtration)
  – 10 Micron (Ideal for pre-pump or general system filtration)

Key Features:

• Modular design – assemble your ideal fuel filter

• All components anodized for E85 compatibility

• Made in USA internal filter element

• Includes billet aluminum mounting bracket


**To Adapt the AN8 ORB to AN6 Male Flare use this fitting.

**To Adapt the AN8 ORB to AN6 Female ORB use this fitting.

Whether you're running a boosted street car or a full track build, the Modular Fuel Filter gives you professional-grade performance with the flexibility to adapt to any fuel system.
