G-Series BMW & Supra A9x Billet Fuel Pump Top Hat

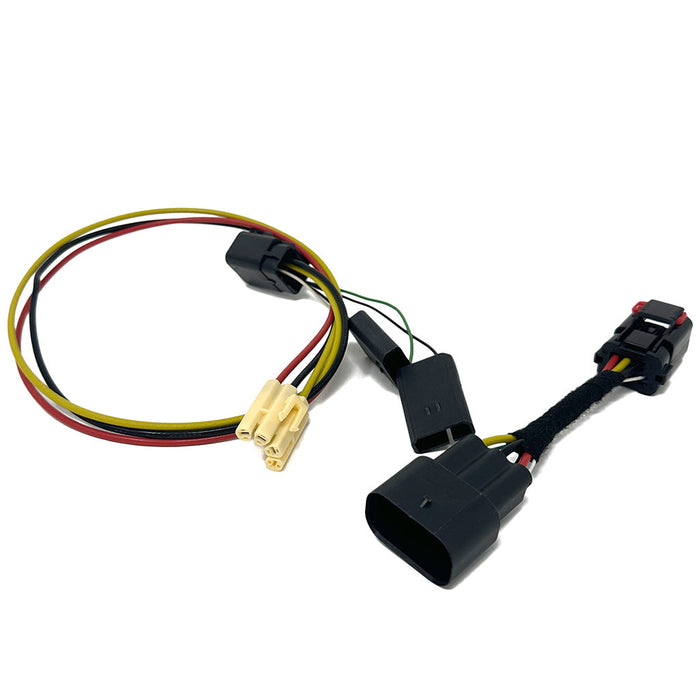

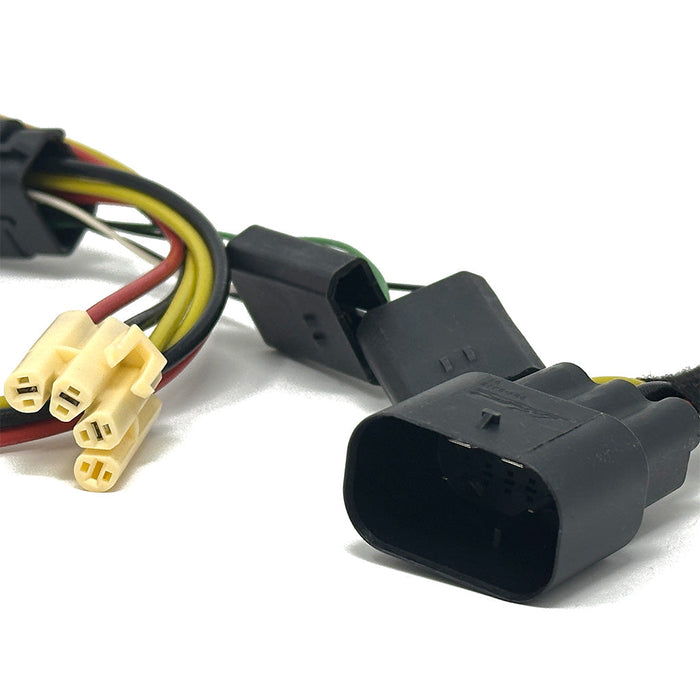

NOW FEATURING PLUG AND PLAY CONNECTORS

Now it is no longer necessary to cut your factory harness!

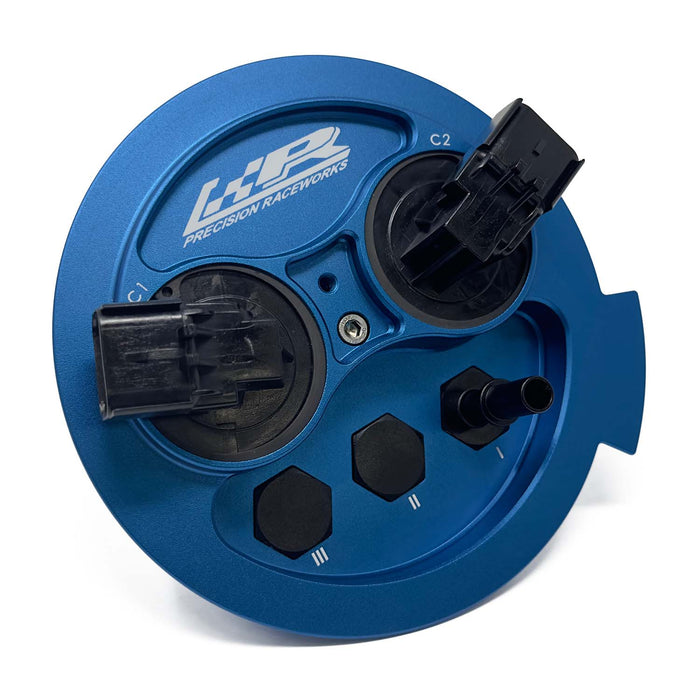

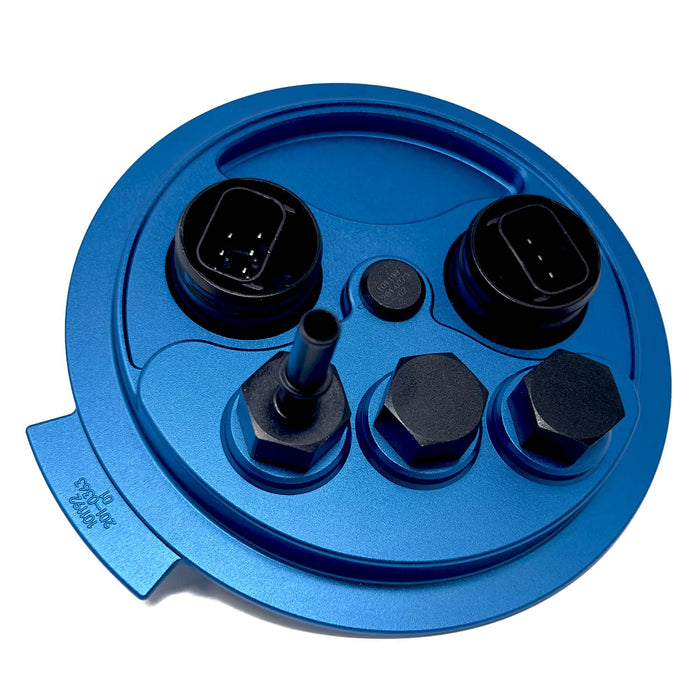

The Precision Raceworks BMW G-Series and A9x Toyota Supra Billet Tophat is a great way to get the most out of any fuel system! With up to 3 dedicated high flow modular ports and up to 12 wires, there are countless ways you can configure your pump setup to meet your needs!

Features & Benefits

• Billet Aluminum top hat with 3 high flow fuel ports (optional - 1 included)
• Ability to run dedicated fuel pump(s) for port injection system
• Compatible with adjustable 1:1 scaling fuel pressure regulator
• Fully sealed quick connect style high current electrical connectors
• All billet fuel fittings when using AN8 or Quick Connect Options
• Increased injector flow (when using 1:1 regulator feature vs static)
• Compatible with all stock or upgraded primary fuel pumps*
• Modular design allows for AN8 or quick connect connection styles
• All components compatible with Gasoline, Methanol, & Ethanol
• Compatible with sensor on tophat (Not all vehicles have this sensor)


 *Note when connecting to some performance fuel pumps, additional PTFE lines and fittings may be required.  Contact us if you need assistance purchasing these items.

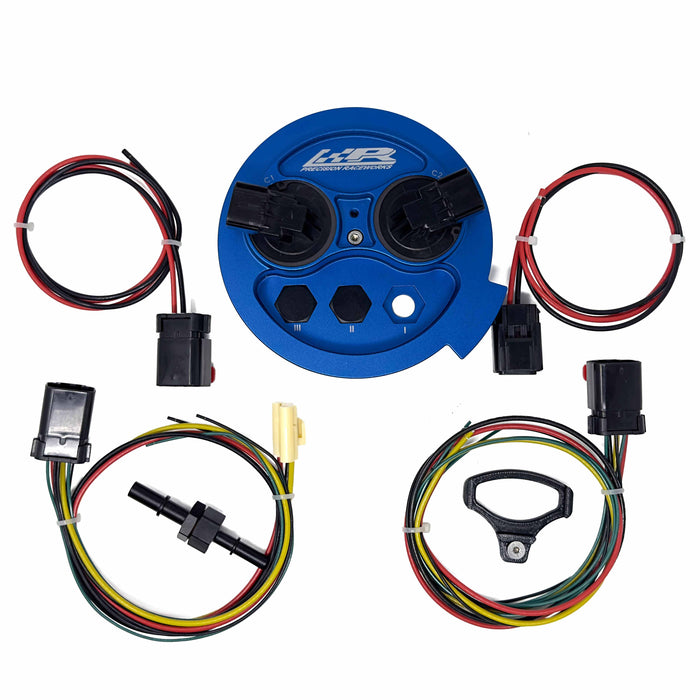

Main Items Included

• Billet Tophat
• Two Electrical bulkheads with connectors (6 wires ea)
• Two electrical connectors pre-wired to run factory pump and floats
• Two electrical connectors pre-wired for single 2-wire pump (additional wires and terminals sold separately)
• One 3/8" male quick connect output (compatible with factory line)
• One 7.89mm male quick connect for in the tank
• One PTFE line for in tank with 7.89 quick connect (for factory filter)
• Two accessory port block off plates
• One sensor mounting bracket (not needed on all cars)

Optional Accessories

• Proprietary full flow low profile AN8 Bulkhead set
• Loose electrical terminals compatible with our connectors
• Pre-crimped pigtail electrical wires compatible with all fuels
• 90 degree billet quick connects for AN6 Fuel line
• Smooth bore PTFE Fuel line by the inch
• All fuel compatible electrical wire by the inch
