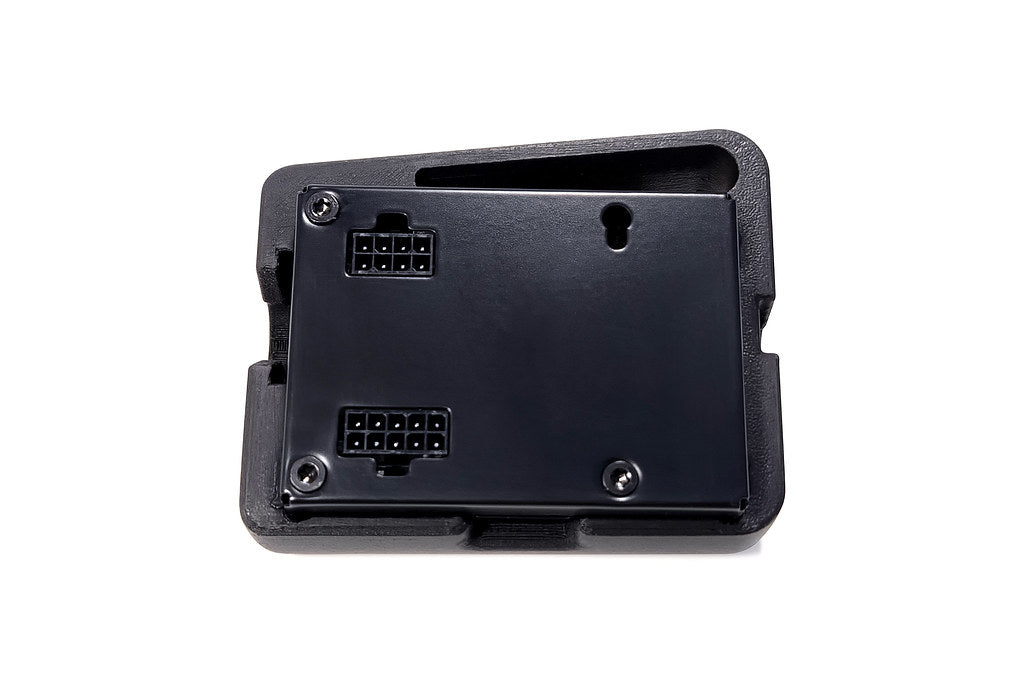

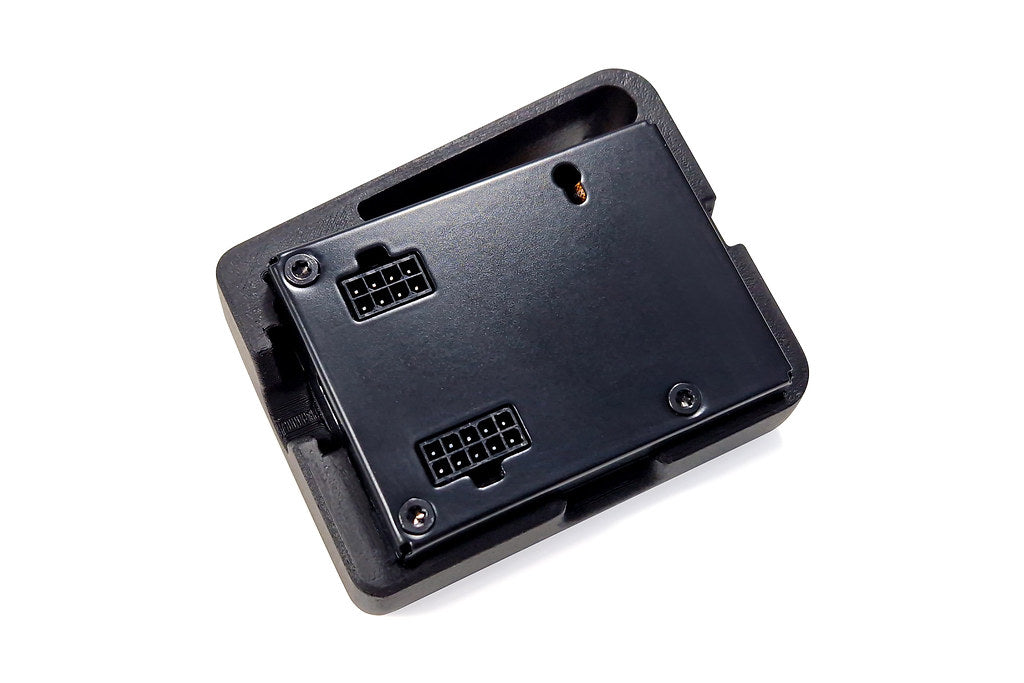

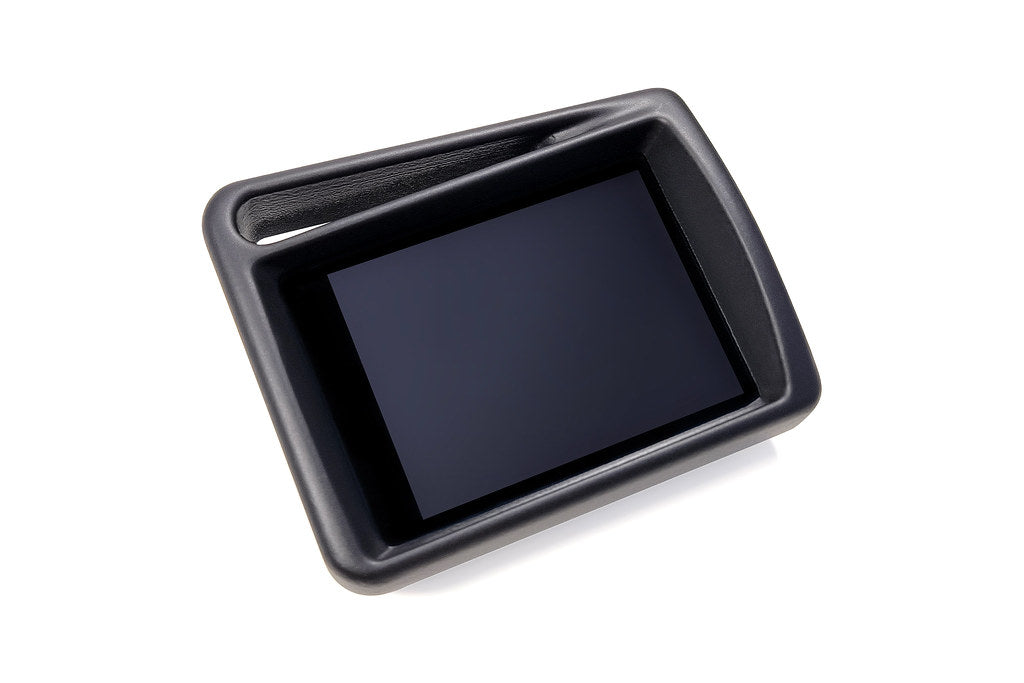

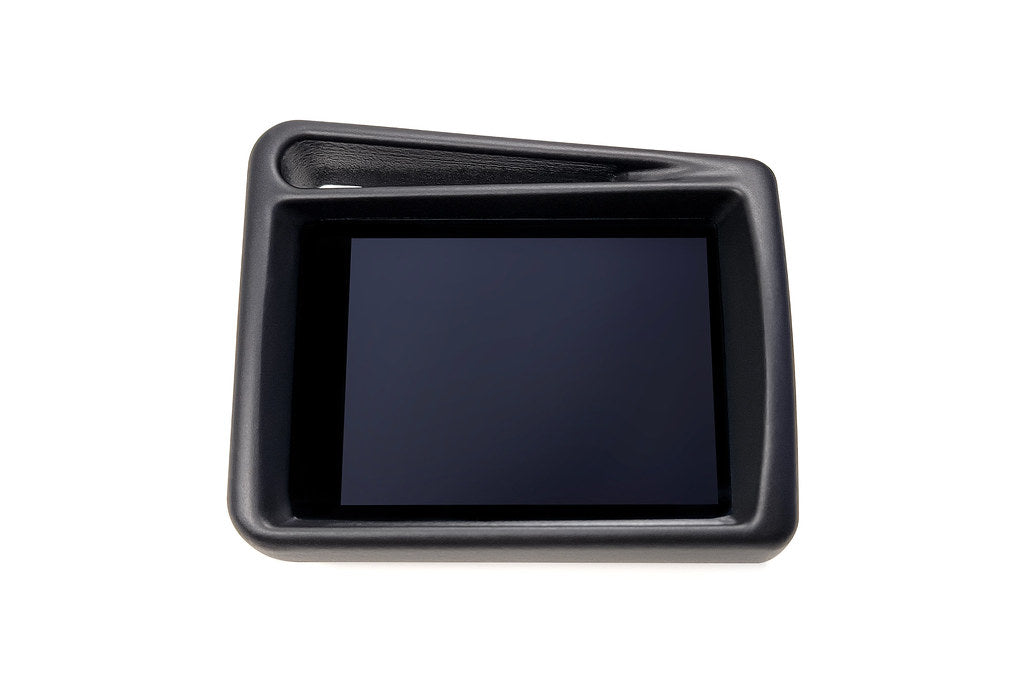

CANchecked VW Corrado Facelift MFD28 Multi Function Display | 2.8" Gen2 (LHD)

The CANchecked VW Corrado Facelift MFD28 Multi Function Display - 2.8" Gen2 (LHD) is a CANchecked digital display solution designed for enthusiasts and tuners who need a compact, configurable way to monitor critical engine and vehicle data.

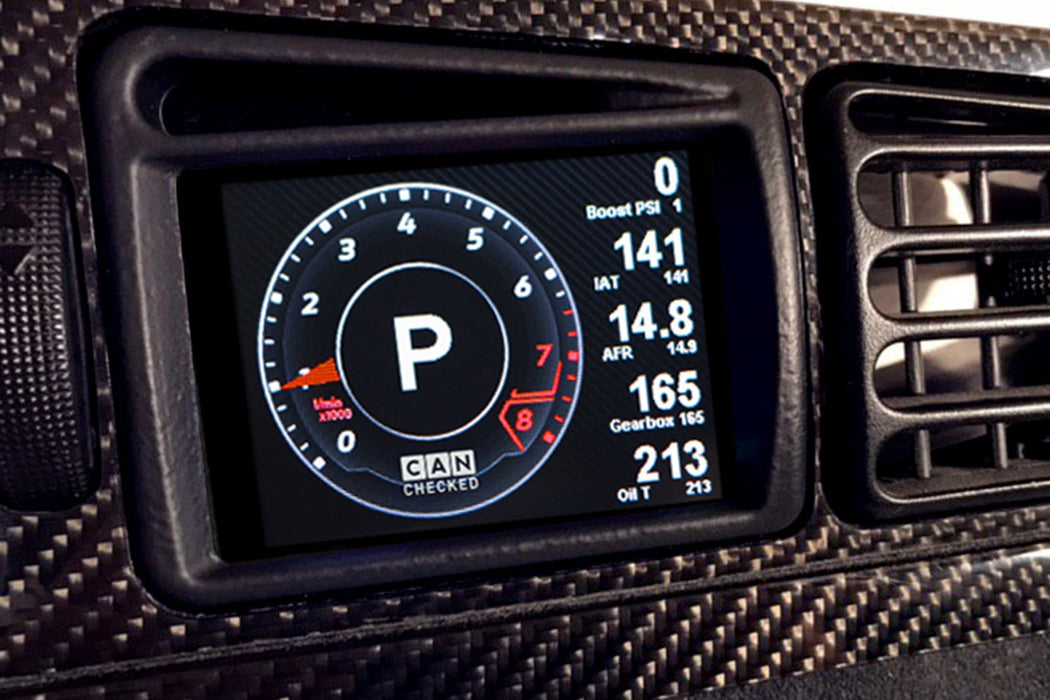

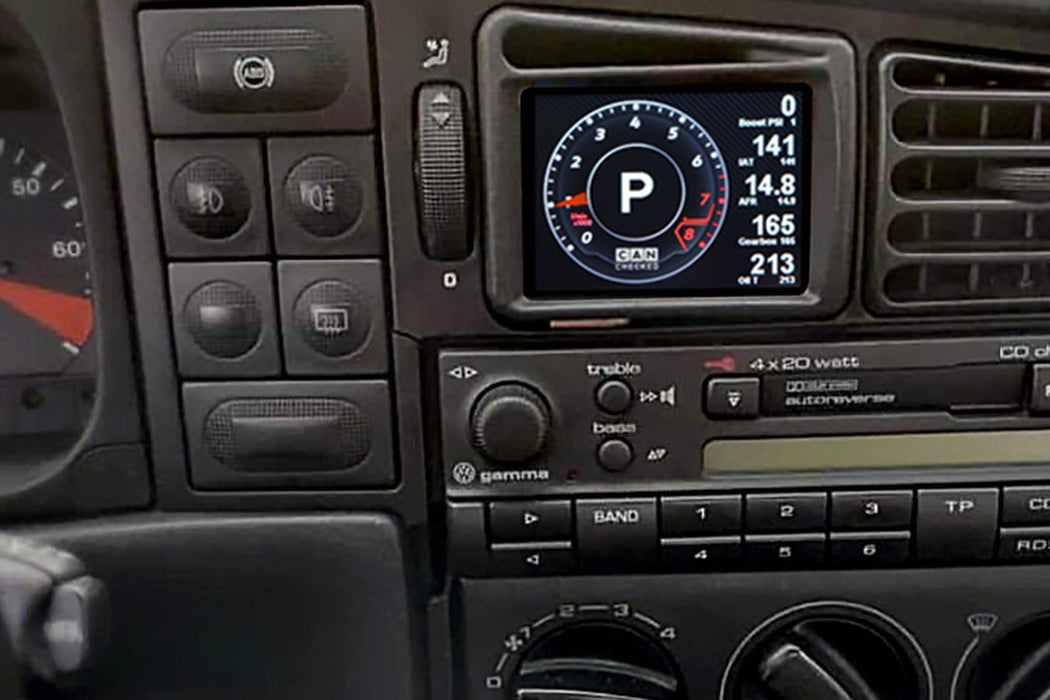

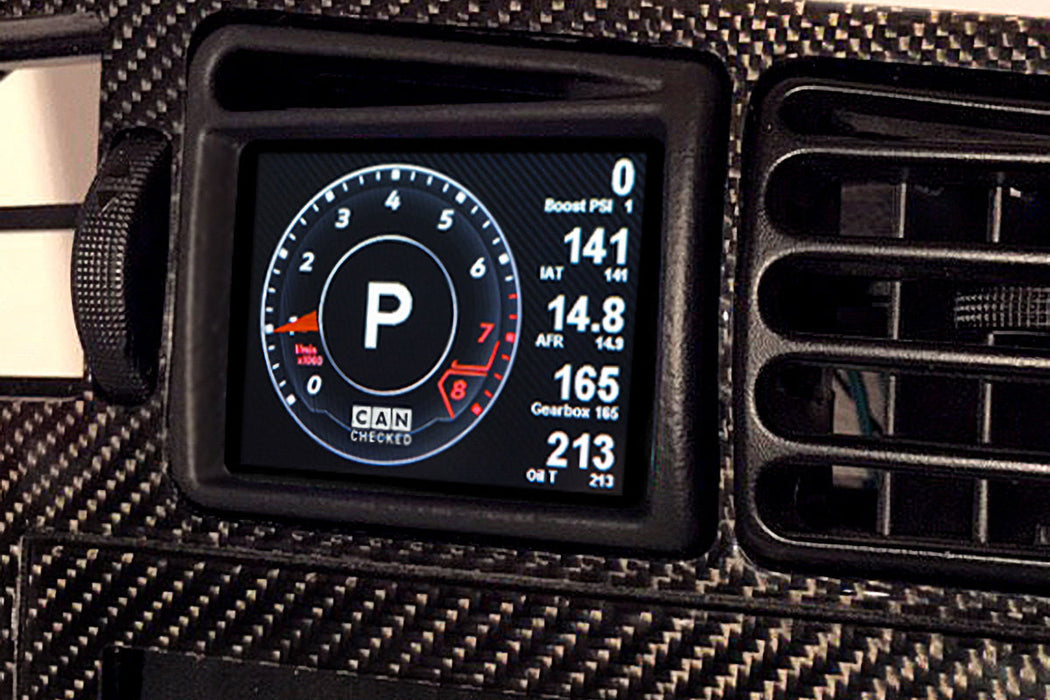

It is well suited for projects that require CAN Bus integration, expandable sensor inputs, integrated shift light functionality, and built-in warning functions. The MFD28 Gen2 transforms your air vent into an intelligent display with features you don't want to miss.

Our displays are designed so that they can be installed by anyone.

Product Details

• Perfect integration: The vehicle-specific bezel still allows airflow past the display
• Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
• Gear display: Directly via Can Bus or calculated from speed and rpm
• Touchscreen: Navigate through pages using intuitive swipe gestures
• Customization: Design your own pages, add your own pictures or start animation
• Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
• Can Switching: Use your display as a keypad and send your own can messages to the bus
• Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
• Logging: Log and save your data to the internal SD card for later analysis.
• Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
• DTC*: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
• Dimming*: Your display automatically dims along with the instrument panel

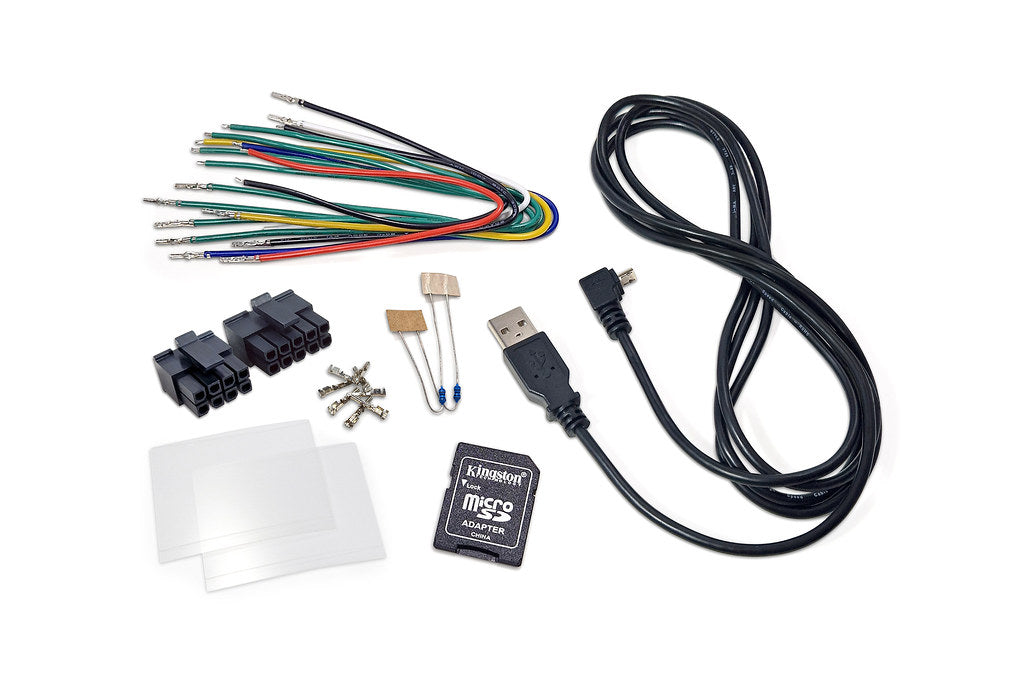

What’s Included

• MFD28 Gen2 data display integrated in the ventilation insert for LHD vehicles
• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• Pins for crimping yourself
• Two 1K resistors (as pull-up for connecting external NTC sensors)
• Quickstart Guide
• USB data cable
