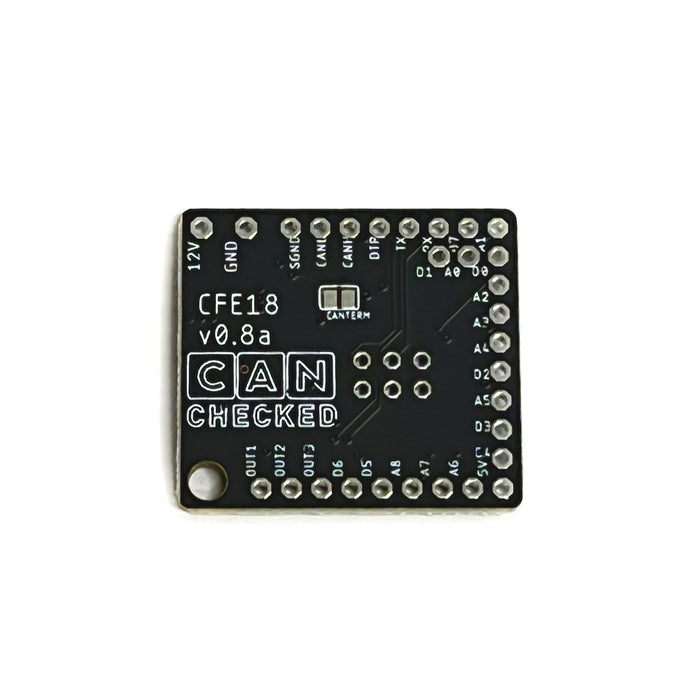

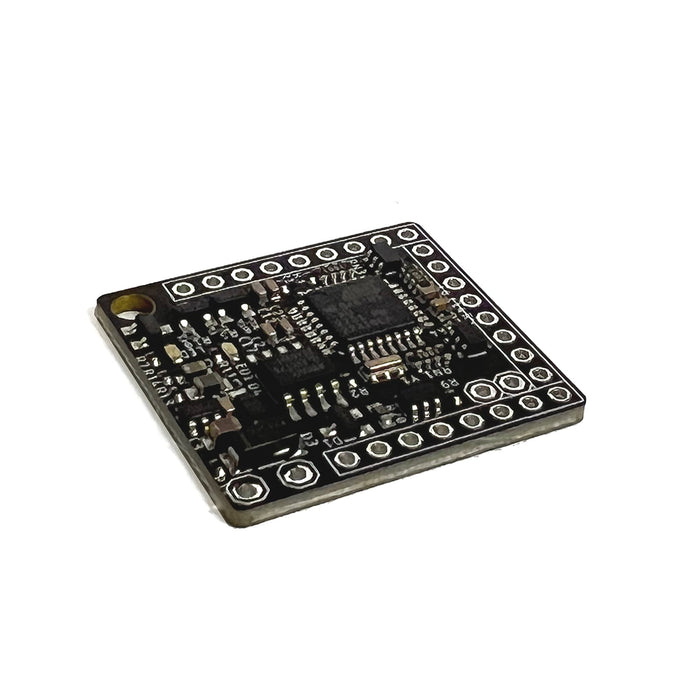

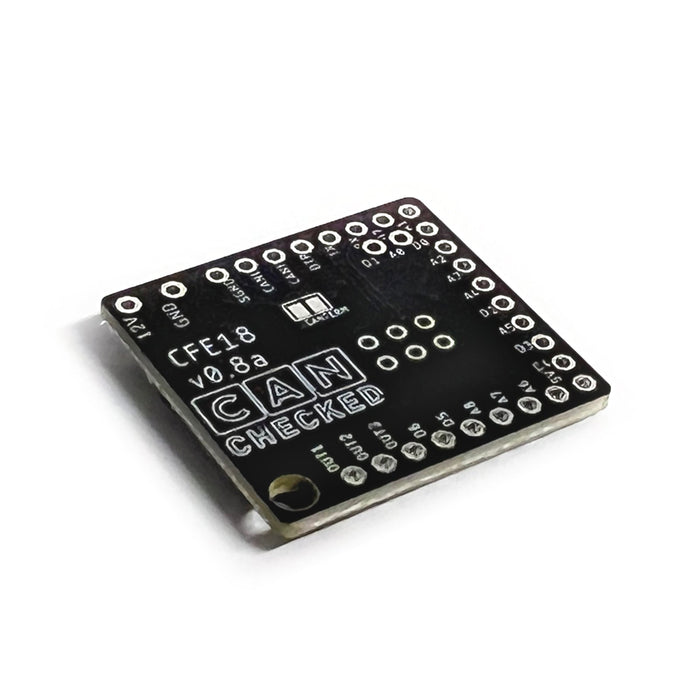

CANchecked CFE18 CAN Switchboard - V1

The CANchecked CFE18 Gen1 - CAN Switchboard is a CANchecked control accessory designed to expand switch input functionality within a compatible CAN Bus based vehicle electronics setup.

It is well suited for projects that require CAN Bus integration, and sensor expansion capability. CFE18 stands for "Can Bus Function Extension," or colloquially, "Can Switch Board."

CAN bus connections in vehicles sometimes present our customers with significant challenges. This is especially true in motorsport applications, where electronics have to be integrated into the steering wheel and information from adjustment knobs or push buttons then needs to be transmitted via CAN bus.

CANchecked now offers a small add-on module with 18 connections: 9 for pushbuttons and 9 for analog inputs (0-5V signal). A voltage converter to ensure connection to a 12V vehicle electrical system is also integrated.
