CANchecked BST10 Boost Sensor 6.5bar (95psi) - Relative

The CANchecked BST10 Boost Sensor is a high-pressure 6.5 bar (95 psi) relative pressure sensor designed for accurate boost pressure monitoring in high-performance and motorsport applications. Engineered for seamless integration with CANchecked displays and aftermarket engine management systems, the BST10 delivers precise pressure data through a reliable 0-5V analog output signal, making it ideal for turbocharged and supercharged vehicle setups requiring elevated boost measurement capabilities.

When paired with the CANchecked ANC04 Analog Sensor Harness, the BST10 connects directly to compatible CANchecked displays through the AIN4 input and is immediately recognized without requiring additional calibration. The plug-and-play integration simplifies installation while providing real-time boost pressure monitoring directly within the CANchecked display environment. The sensor can also be wired directly to most programmable ECUs, offering flexibility for standalone engine management and custom vehicle applications.

With a relative measurement range of up to 6.5 bar (95 psi), the BST10 is well suited for high-boost forced induction applications where traditional lower-range sensors may reach their limits. The sensor provides stable and repeatable readings throughout the operating range, making it suitable for performance tuning, diagnostics, motorsport data acquisition, and advanced boost control strategies.

Product Details

• 6.5 bar (95 psi) relative boost pressure measurement range
• Maximum absolute pressure measurement of 7.47 bar (108.3 psi)
• 0-5V analog output signal
• Compatible with CANchecked displays using the ANC04 Analog Sensor Harness
• Direct ECU integration capability
• Suitable for high-boost turbocharged and supercharged applications
• DTM 06-3S connector interface
• Plug-and-play operation with supported CANchecked displays

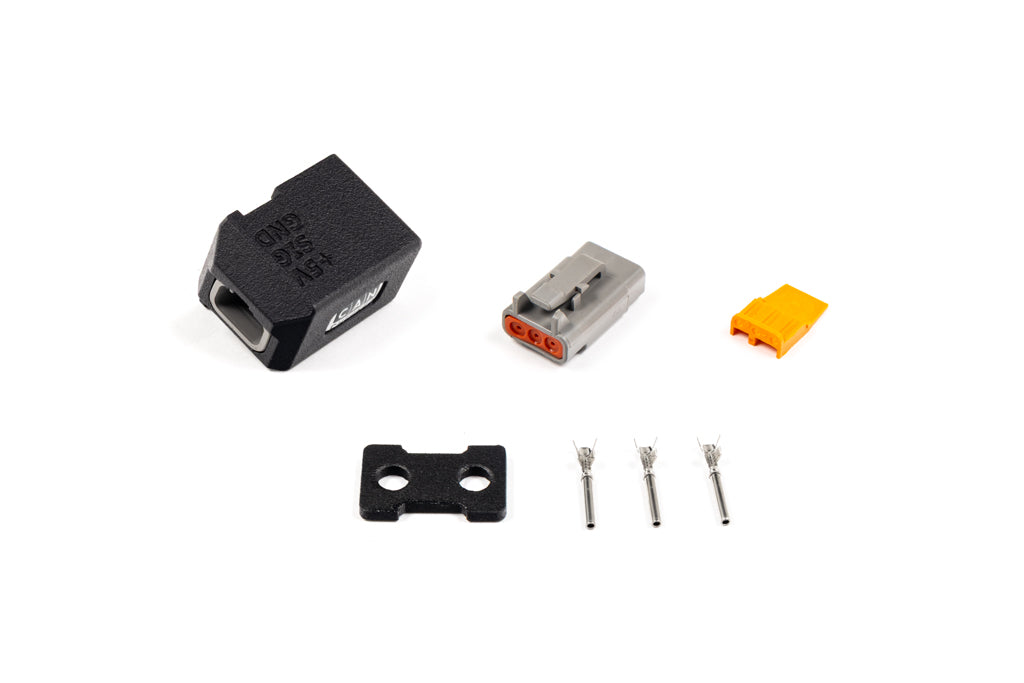

What's Included

• CANchecked BST10 Boost Pressure Sensor
• DTM 06-3S Connector
• 4x Crimp Pins
• Wedgelock
• Adapter Piece
