CAE Ultra Shifter "UNTERFLUR" AUDI A3/S3 8V & TT FV 02M/Q MQ350

Special Kit for AUDI AUDI A3/S3 8V & TT FV with a 02M/Q 6 speed cable transmission, type MQ350.

CAE Ultra Shifter - Optimised for motor sports with the following features:

• CAE Ultra Shifter for AUDI A3/S3 8V & TT FV  with a 02M/Q 6 speed cable transmission, type MQ350.
  UNDERFLOOR VERSION LIKE THE ORIGINAL PART

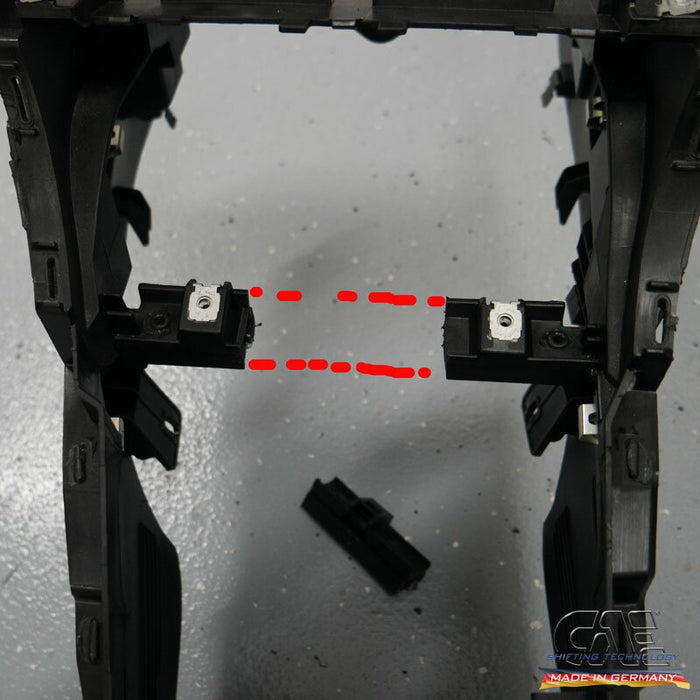

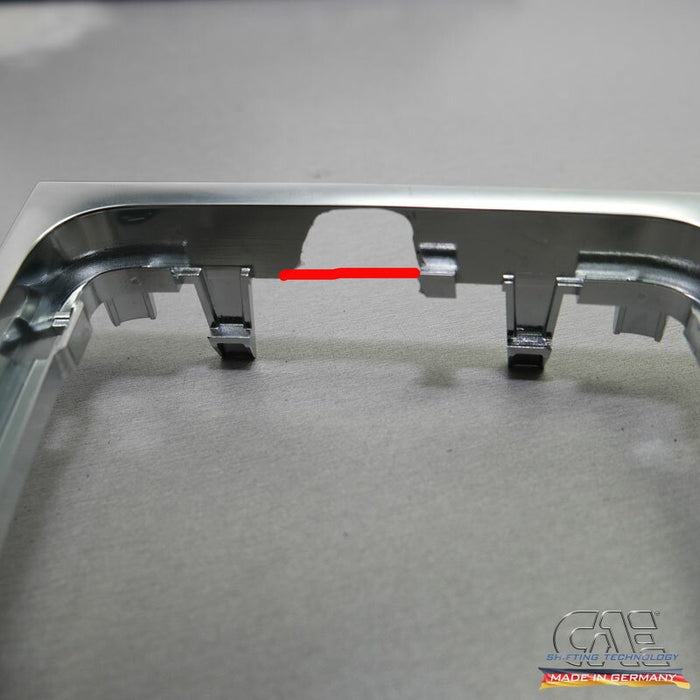

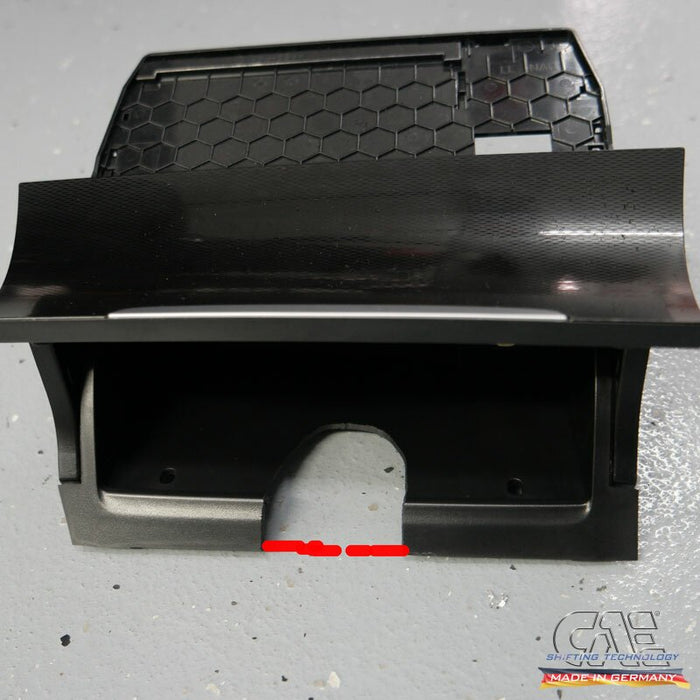

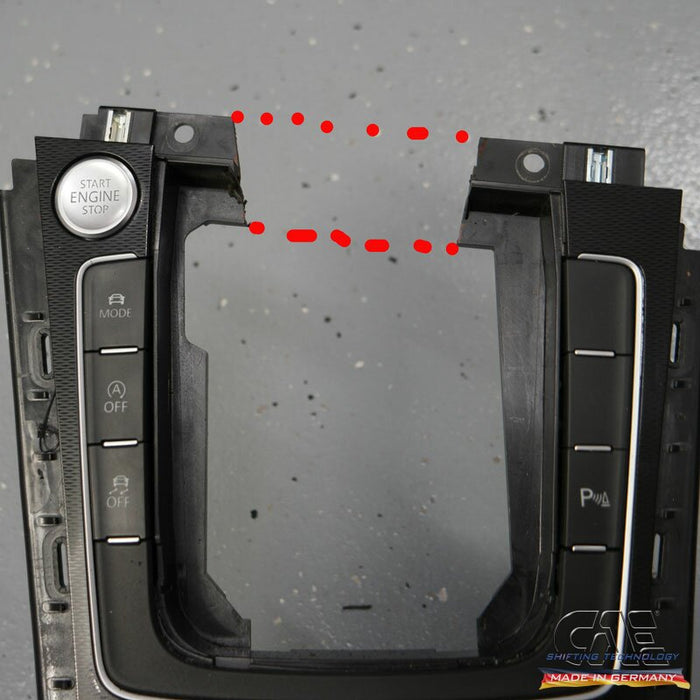

• NO DRILLING FOR CABLE PASS THROUGH, NO MODIFICATION OF THE CENTER CONSOLE HIMSELF, JUST THE COVERFRAMES HAVE TO BE CUTTEUD OUT
  MUCH LOWER EXPENDITURE FOR INSTALLING, REMOVING OF THE CENTER CONSOLE IS NOT NECESSARY

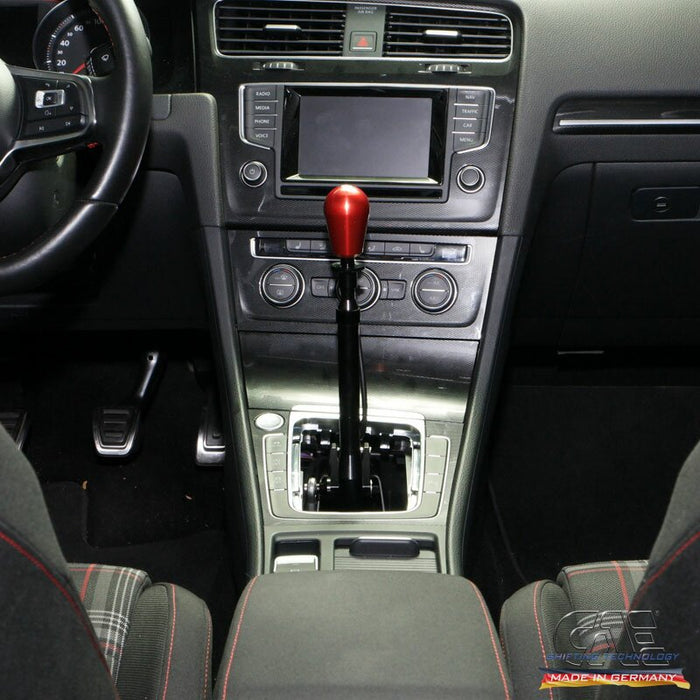

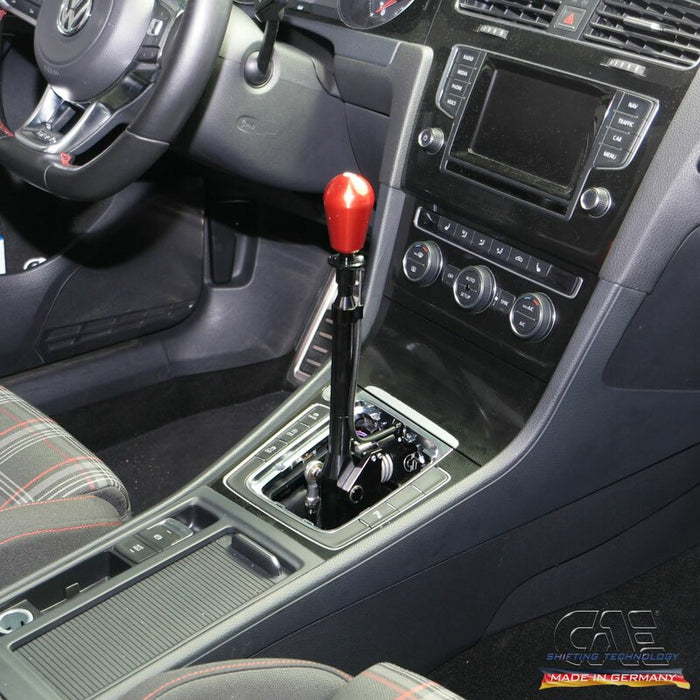

  SHIFTER CAN BE INSATLLED NEARLY INVISIBLE !
• Short and super-precise shifting travel, exclusively H-pattern.
• The coupling system remains in its original form.
• Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 70 x 70 mm.
• Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
• Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
• Problem-free shifting of gears under stress or in curves.
• Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
• Right/left stops and reverse gear stop adjustable separately.
• Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material

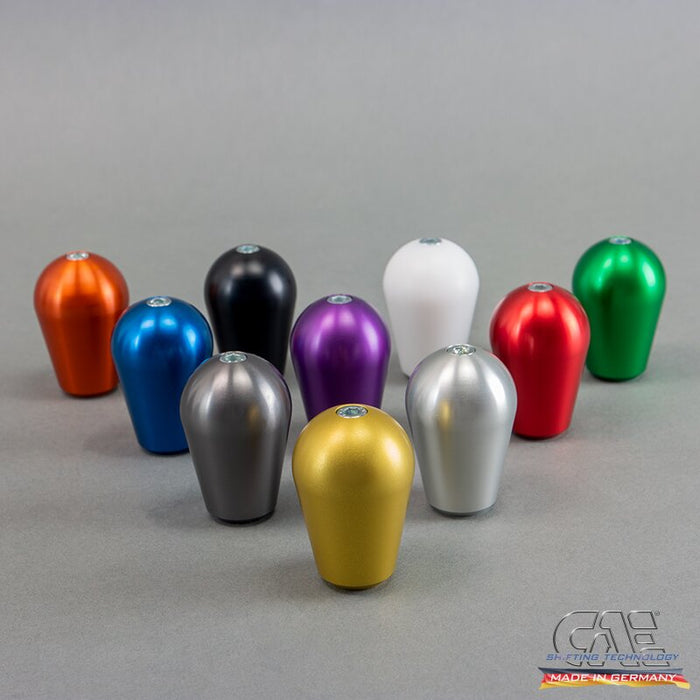

• Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam




  Total height:	approx. 460 mm
  Total length:	approx. 300 mm
  Dimensions of base plate:	approx. 300 x 125 mm
  Shifting travel:	approx. 70 mm
  Selector travel (transverse direction):	approx. 70 mm
  Weight (complete):	approx. 3,5 kg
  Offset of the gear lever knop (back / up):	approx. 50 / 100 mm

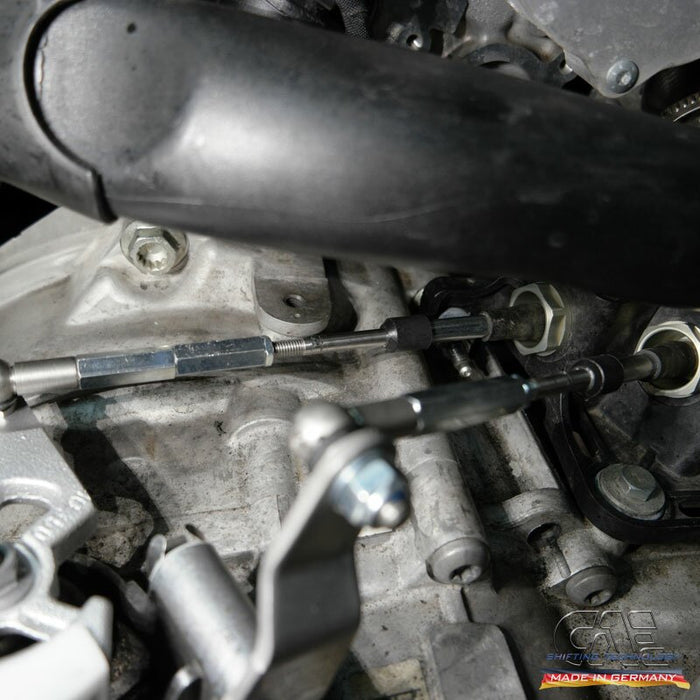

  The original gear levers have to be modified. Find modified gear lever kit (10145KIT) and the suitable gearbox cable bracket (10145WID) under "Accessories" (see below).

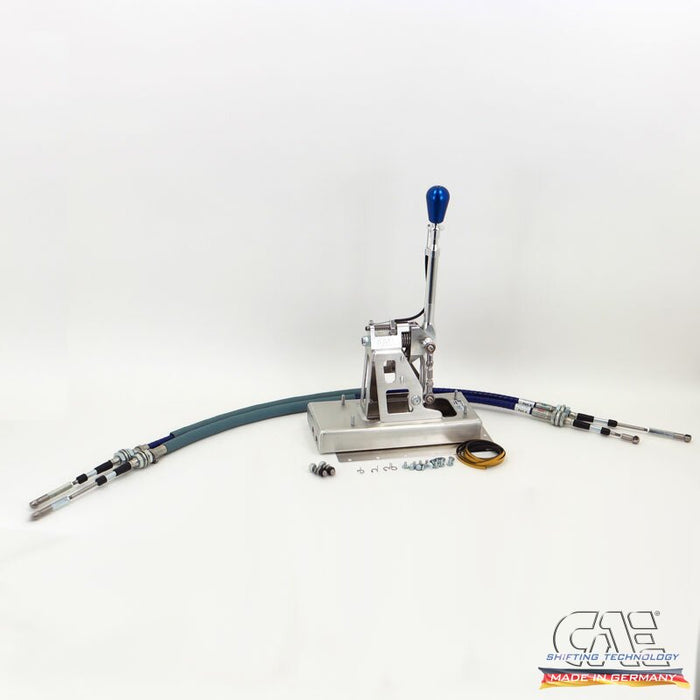

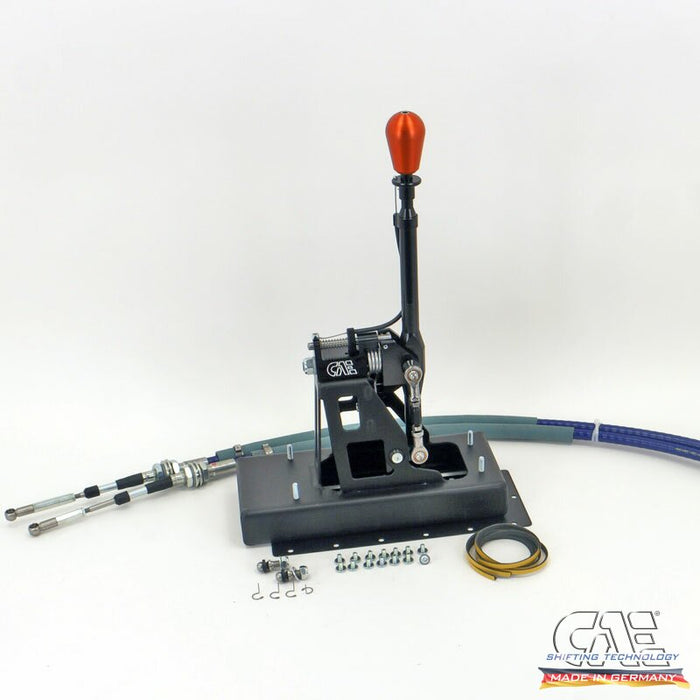

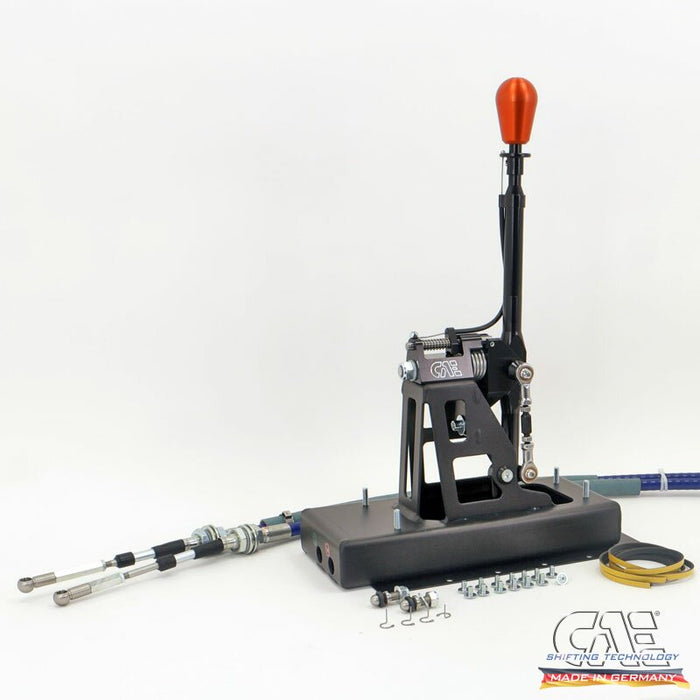

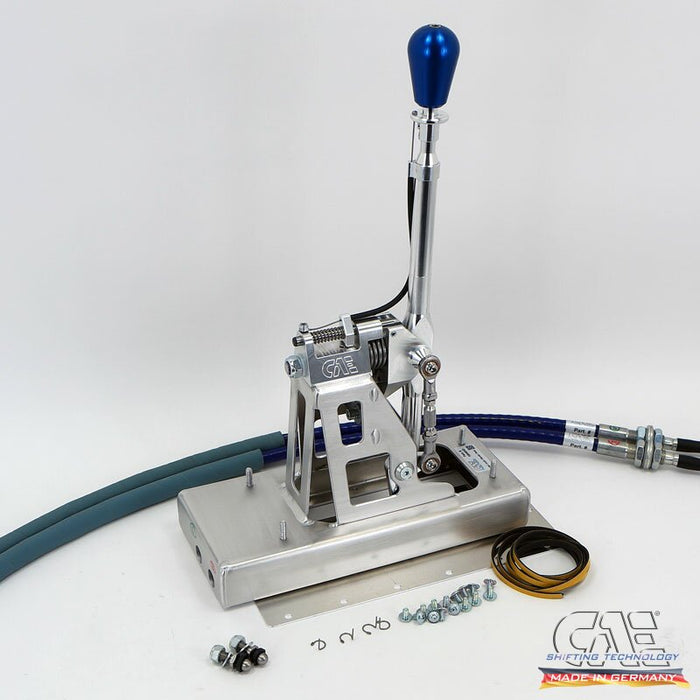

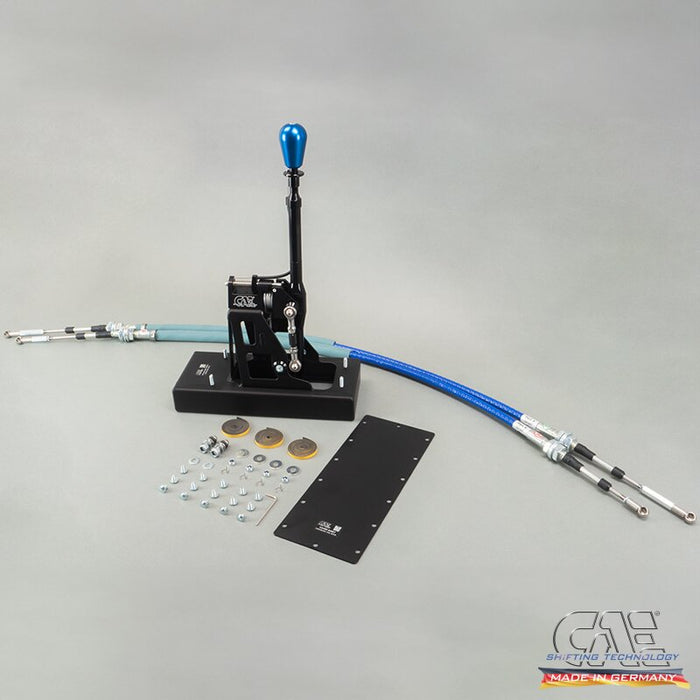

  Delivery: Shifter completely assembled, covering plate for tunnel opening, CAE HD gearshift cable, all screws and small parts

  You can find the INSTALLATION INSTRUCTIONS for download behind the "PDF" tab here on this page

  ATTENTION

  This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.

  If you would like to have your Shifter with german TÜV Papers, please contact us in parallel with the purchase
