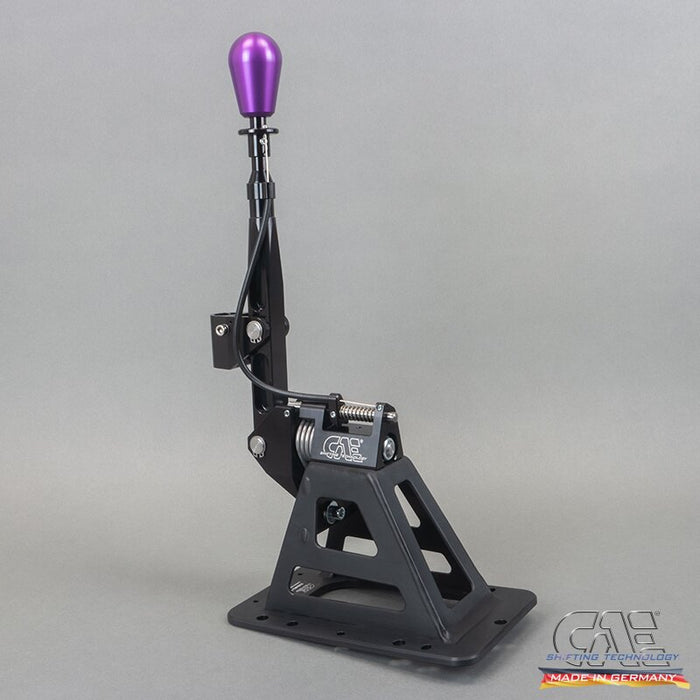

CAE Ultra Shifter Subaru WRX 5 Speed 08-`14 RACE
Description
Race version with 1-part housing and reinforced shift rod for use WITHOUT center console !!
- optimized for "WRX" vehicles with 5-speed gearbox
- The 1-part shifter housing and the reinforced shift rod are designed for use in motor sports.
- The installation of the center console is NOT intended for this version
- Short and super-precise shifting travel, exclusively H-pattern.
- The clutch system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- the reverse gear lock of the shifter is without function at 5 Speed Gearboxes, internal lock out will prevent accidental engagement of reverse gear.
(Advantage: if you ever swap to 6 speed, you already have the right shifter) - Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Complete kit for adaptation stock shift rod with all small parts, fastening material and detailed installation instructions.
-

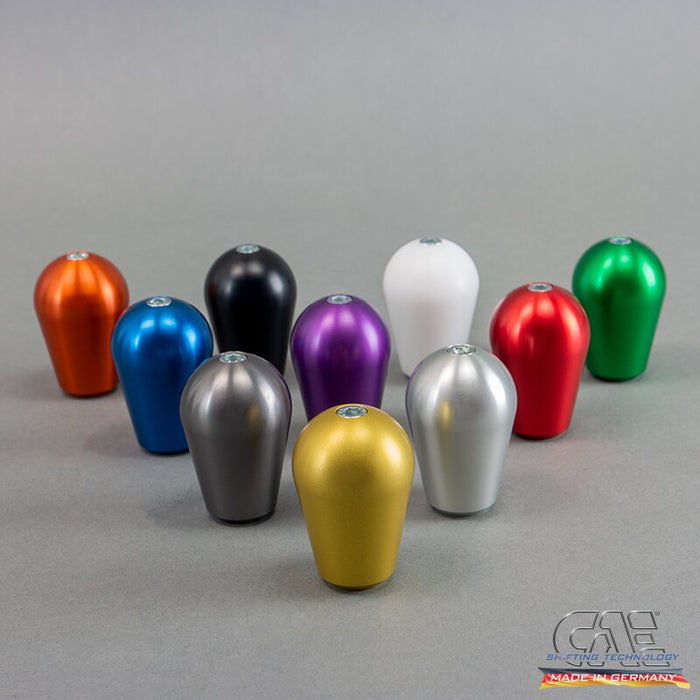

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 435 mm |
| Total length: | approx. 240 mm |
| Dimensions of base plate: | approx. 198 x 124 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 2,1 kg |
| Offset of the gear lever knop (back / up): | depending on vehicle type approx. 30 / 80 mm |

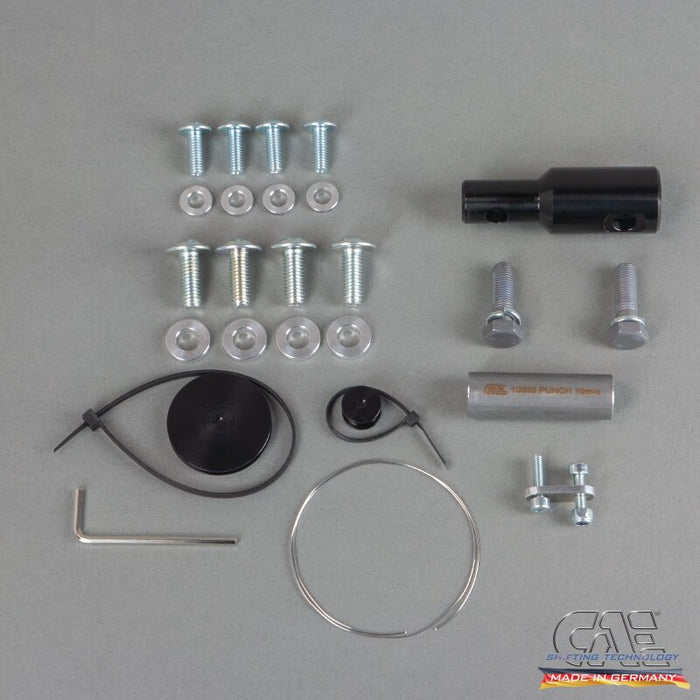

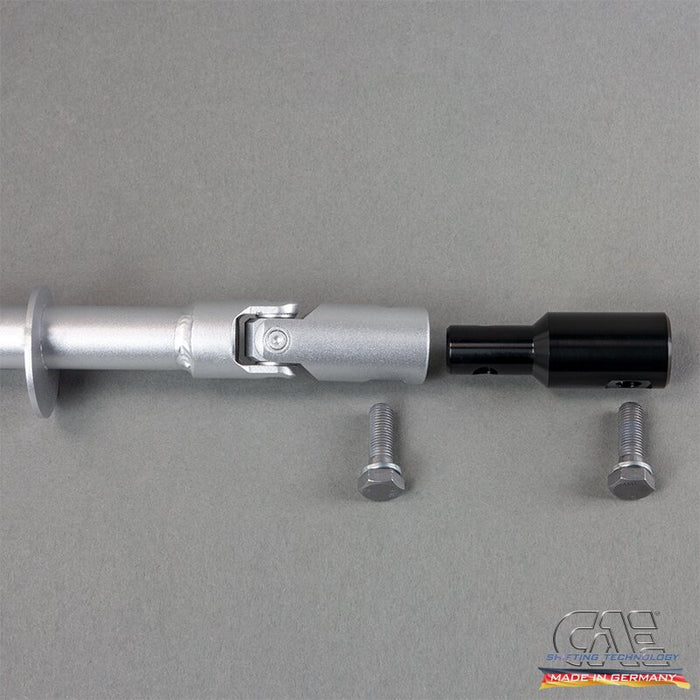

Delivery: Shifter completely assembled, special shift rod, Rod adaptor for 5 Speed Gearbox ; all screws and and required small parts
