CAE Ultra Shifter Porsche 964 & 993
Description

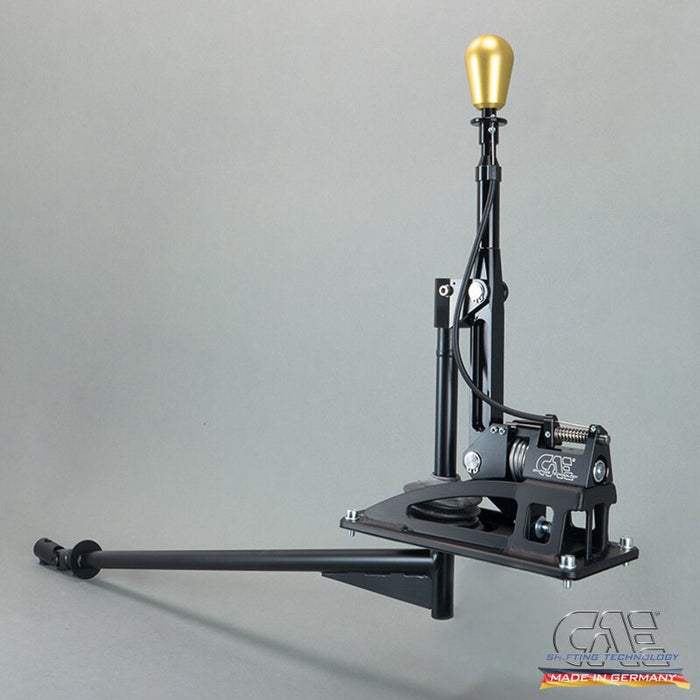

CAE Ultra Shifter - PORSCHE 964 & 993
- CAE Ultra Shifter for Porsche 964 & 993
!!! fits only to Porsche 964 & 993 C2 !!! NOT fitting to C4 AWD !!! - if center console schould be mounted it have to be modified (see pics)
- developed for 5& 6-speed Gearboxes
- Short and super-precise shifting travel, exclusively H-pattern.
- The coupling system remains in its original form.

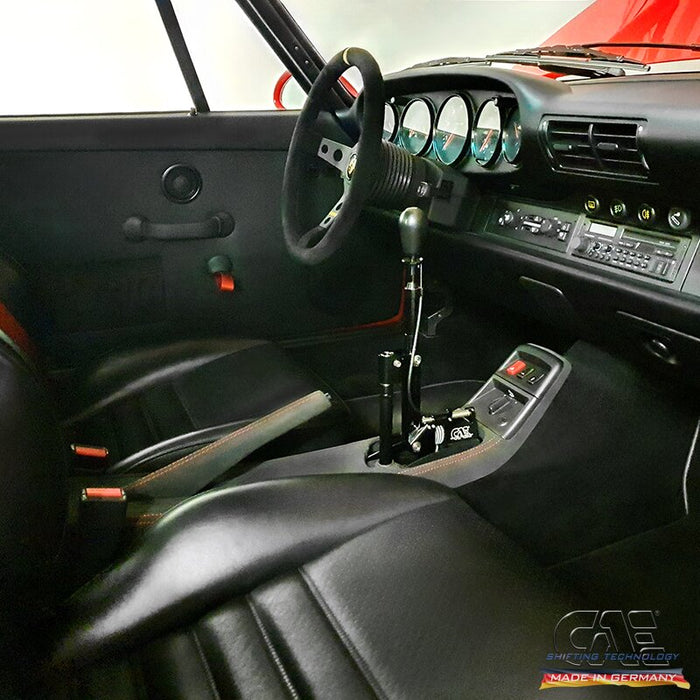

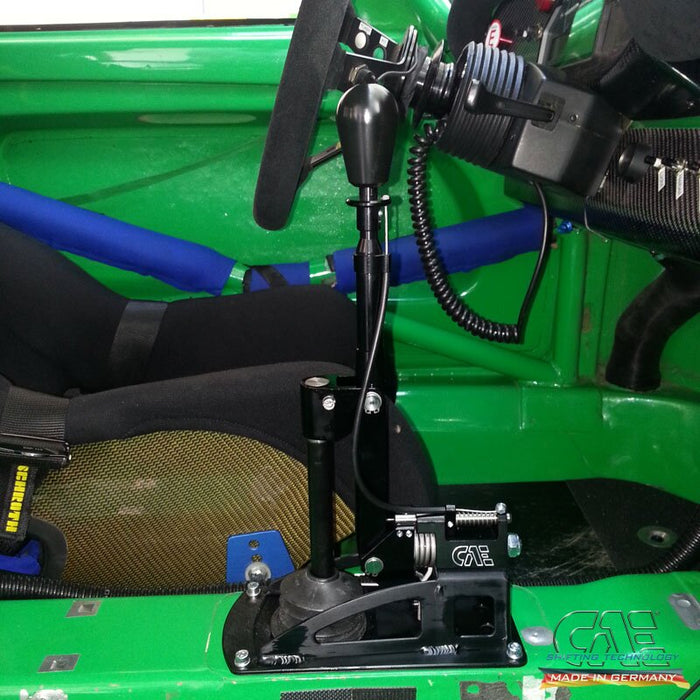

- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 78 x 78 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.

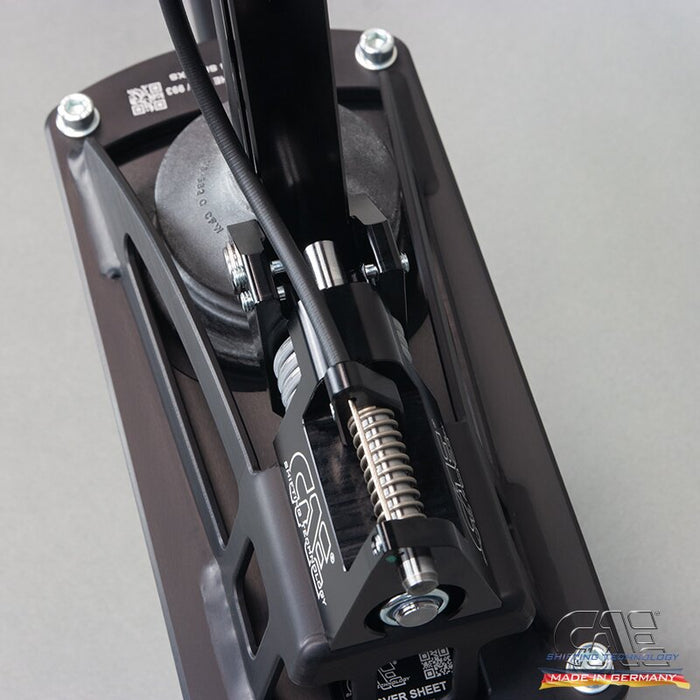

- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.

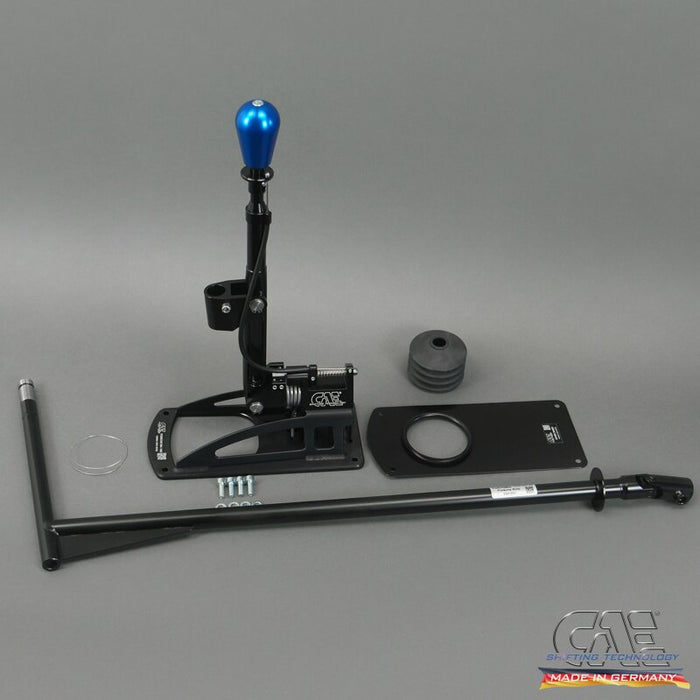

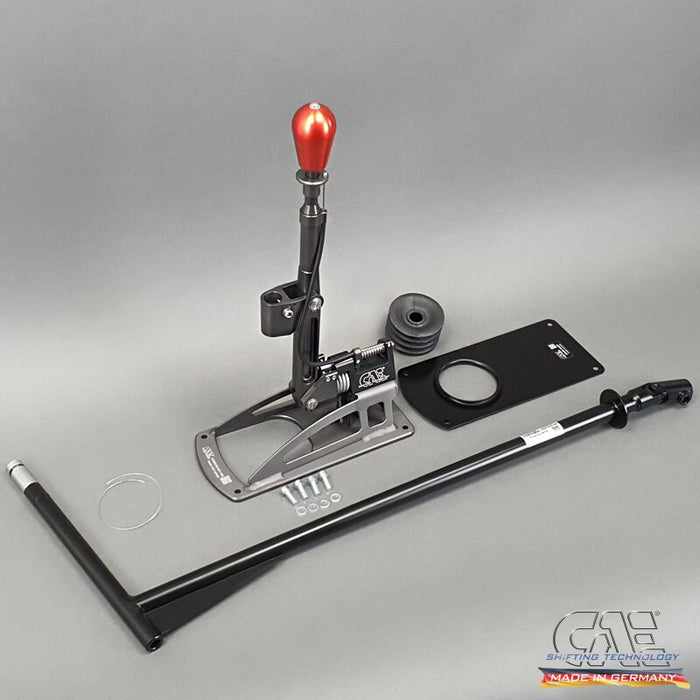

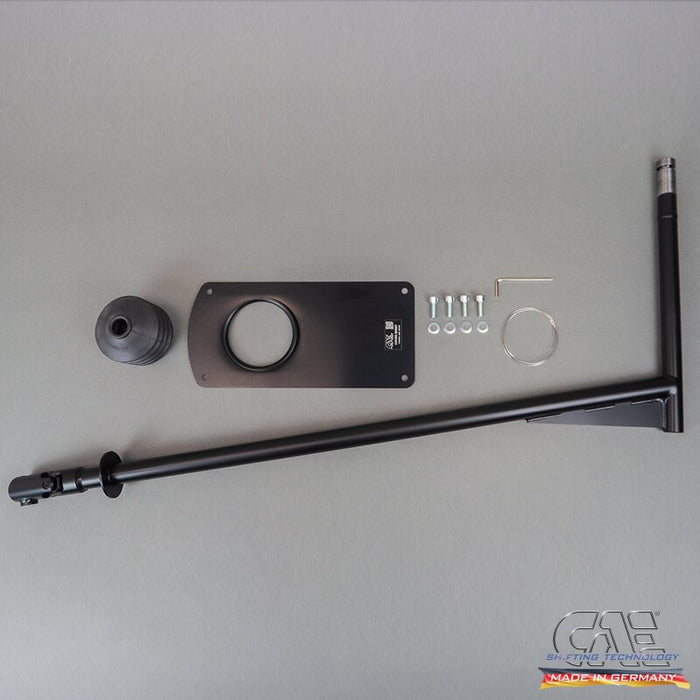

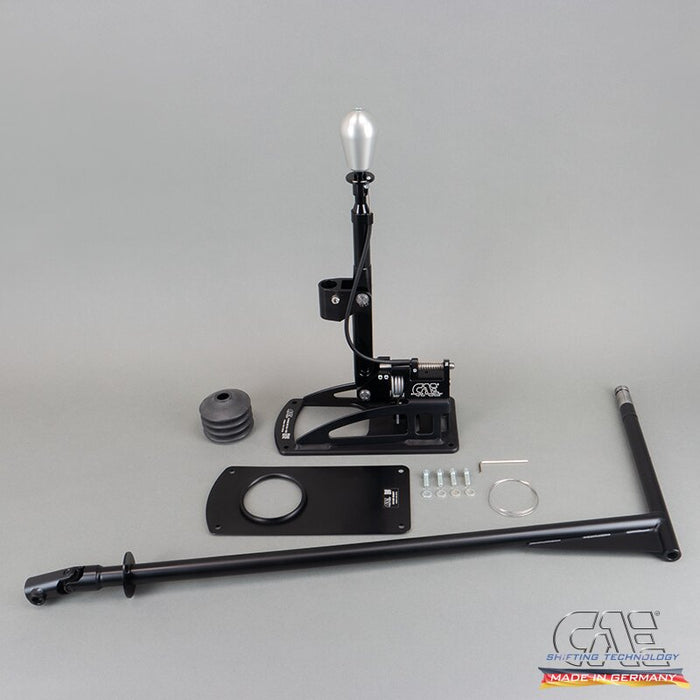

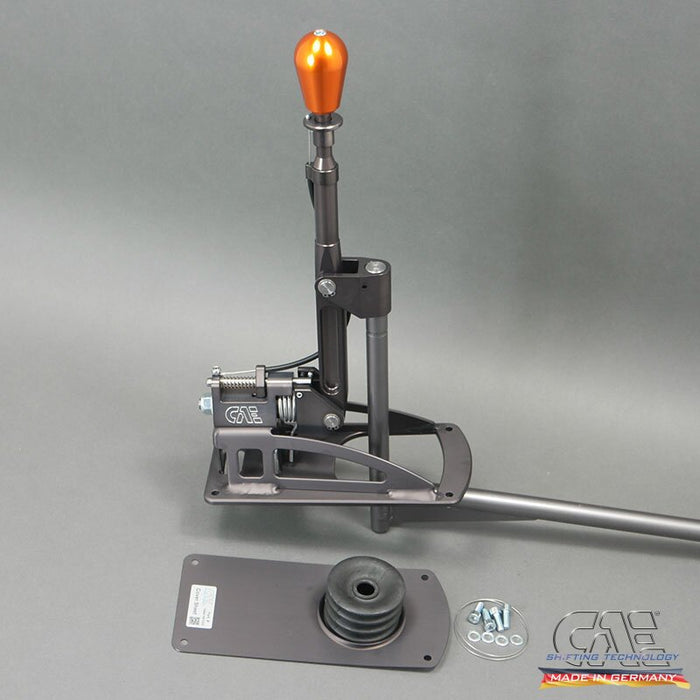

- Simple installation through complete conversion kit: system Comes with all small parts and fastening material
-

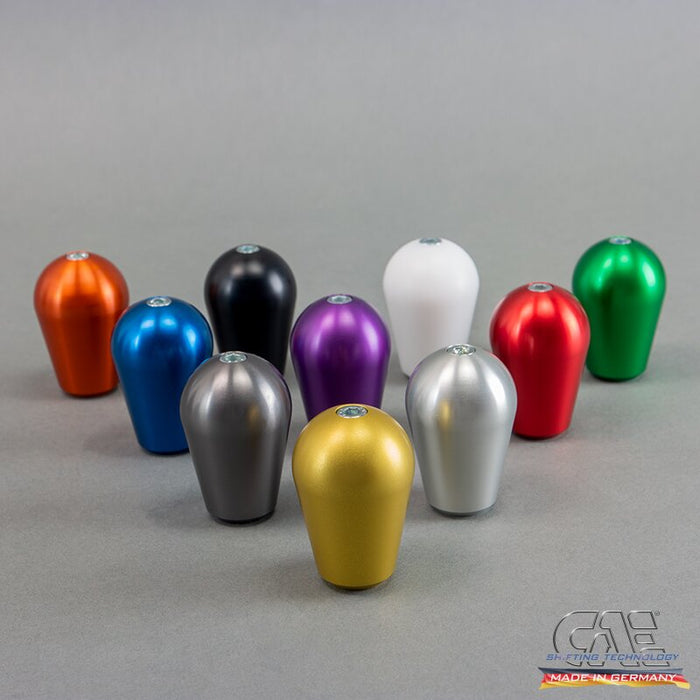

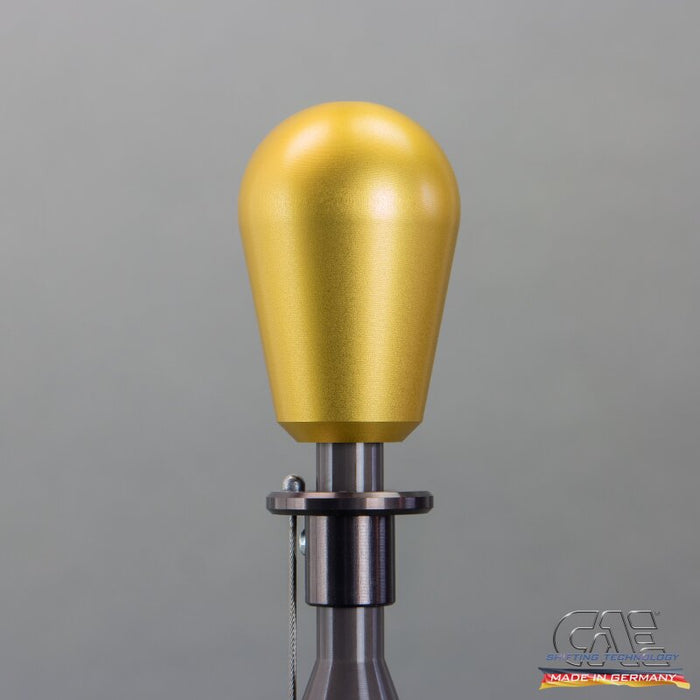

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
Total height: | approx. 385 mm |
Total length: | approx. 290 mm |
Dimensions of base plate: | approx. 290 x 120 mm |
Shifting travel: | approx. 78 mm |
Selector travel (transverse direction): | |
Weight (complete): | approx. 1,95 kg |
Offset of the gear lever knop (back / up): | approx. 40 / 100 mm |
!!! Shifter fits only to Porsche 964 & 993 C2
!!! NOT fitting to C4 AWD !!!
