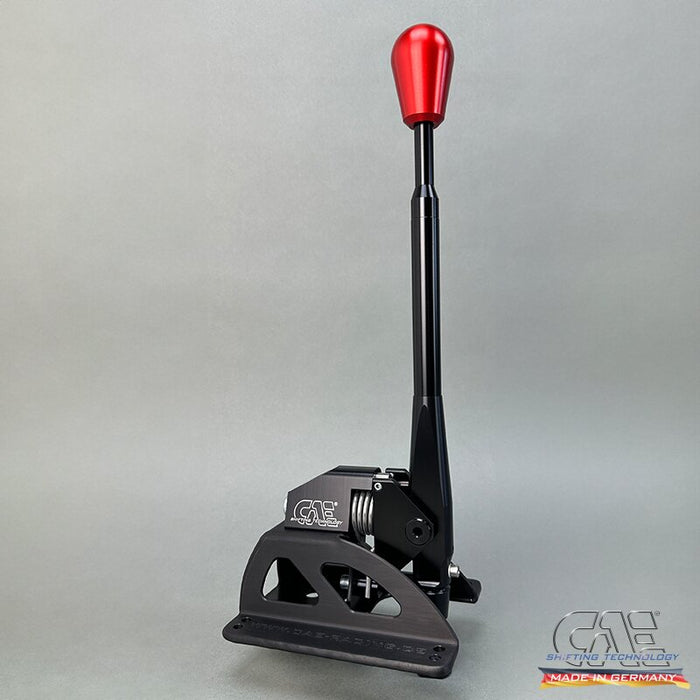

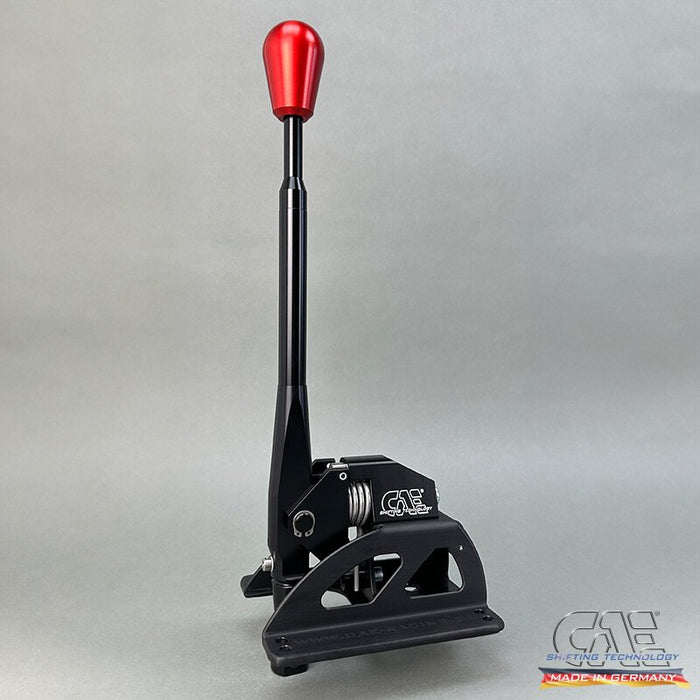

CAE Ultra Shifter Escort Cosworth MT75
Description
CAE Ultra Shifter - Optimised for motor sports with the following features:
- CAE Ultra Shifter for Ford Escort Cosworth with standard MT75 gearbox (not suitable for BORG WARNER and Quaife Big Tooth gearbox).
- Short and super-precise shifting travel, exclusively H-pattern
- The coupling system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.

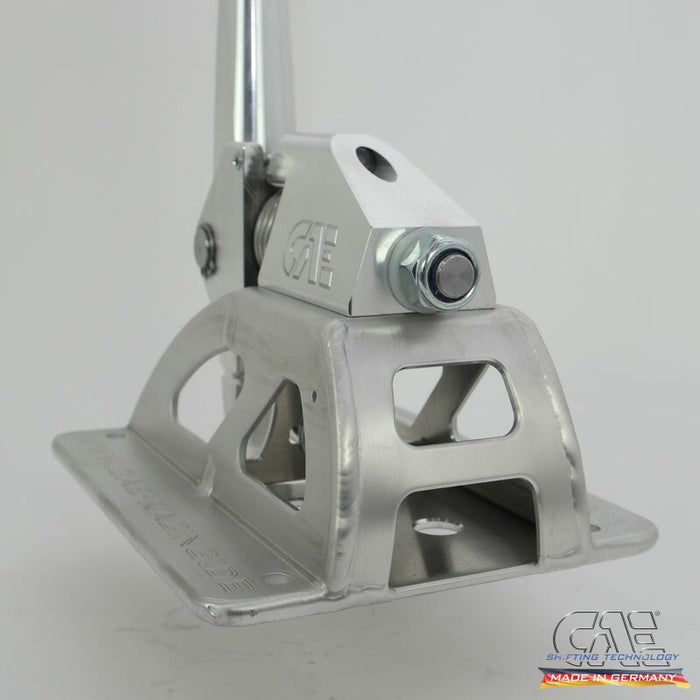

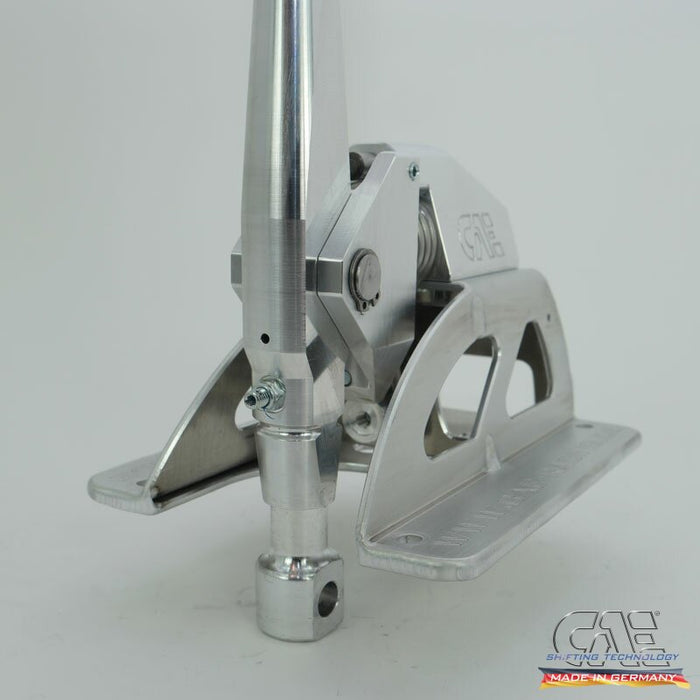

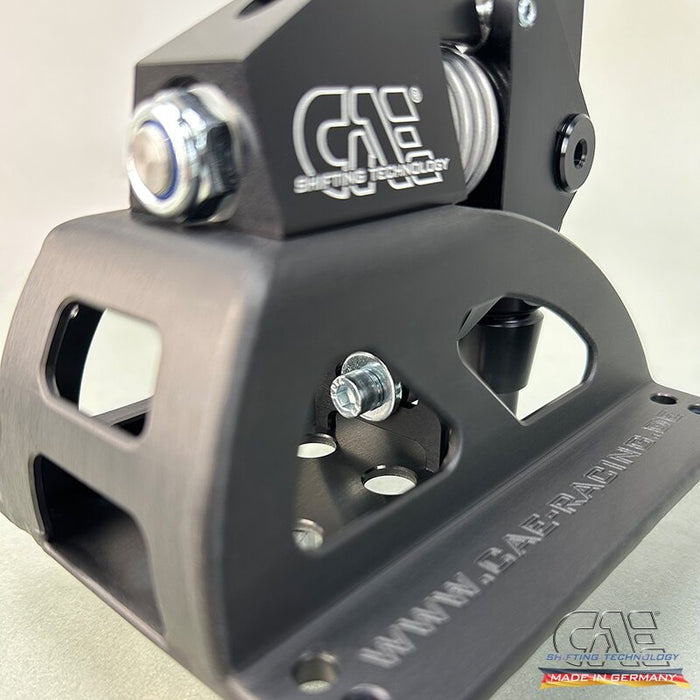

- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- easy shifting of gears under stress or in curves.

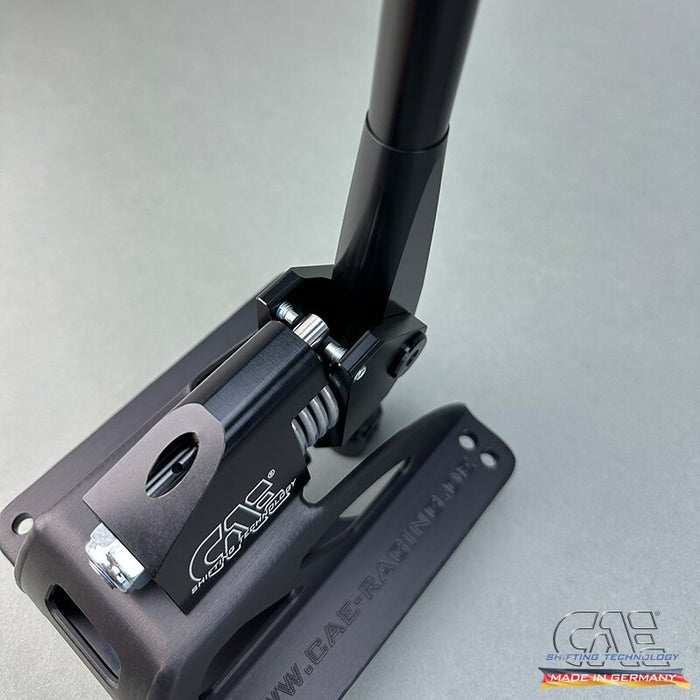

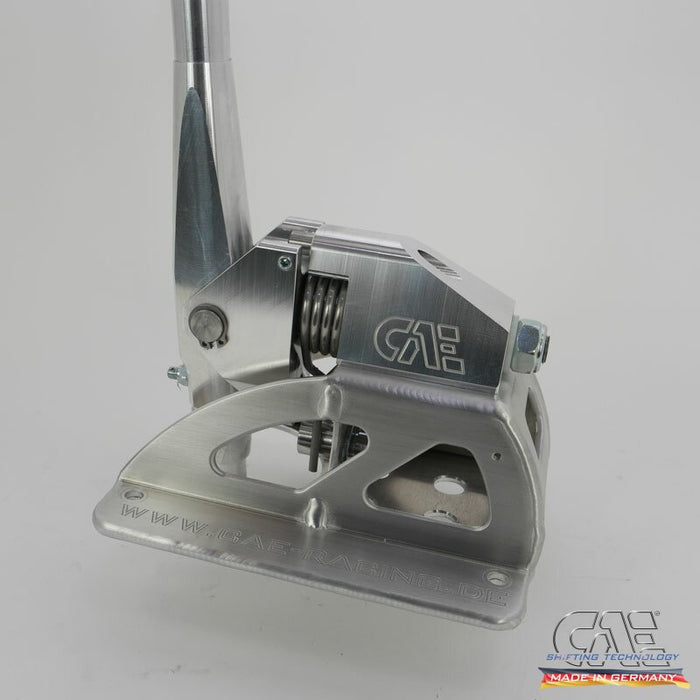

- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.

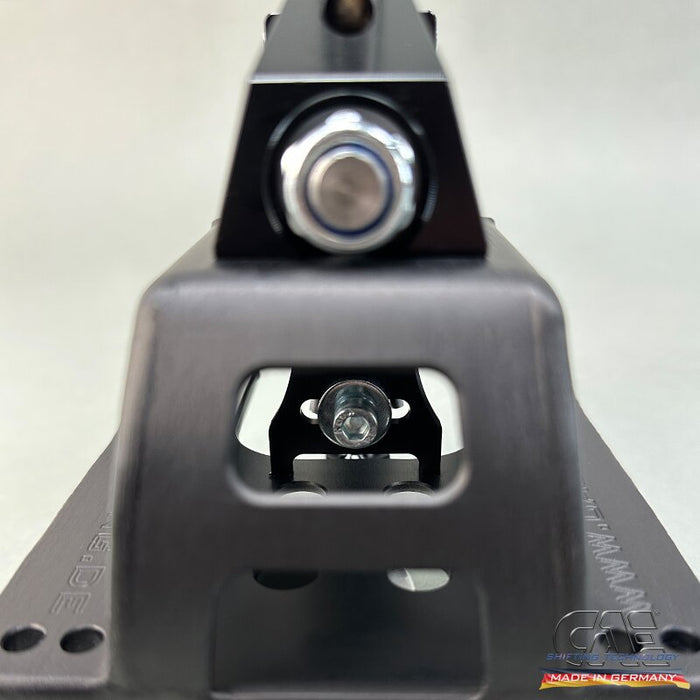

- Right/left stops adjustable separately.

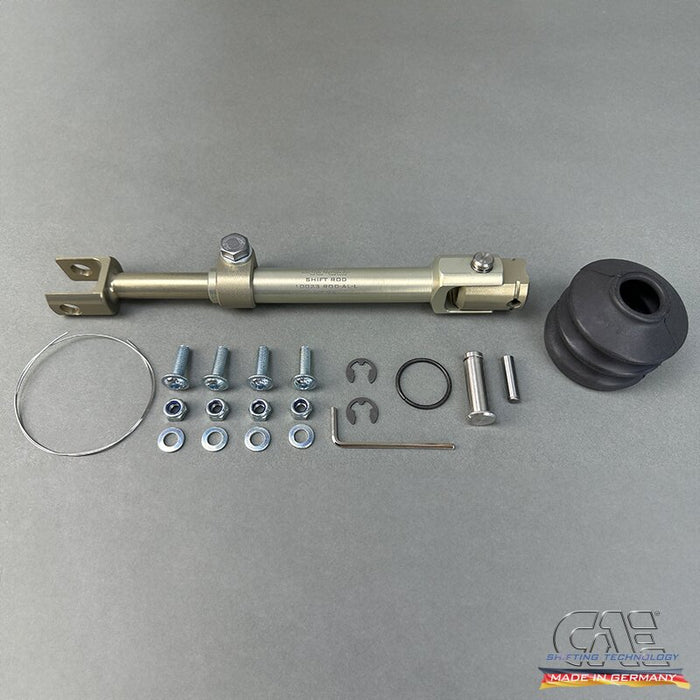

- Shifter will be delivered as complete kit including CAE adjustable shift rod milled from 7075 aluminium,
- centre console has to be modified
-

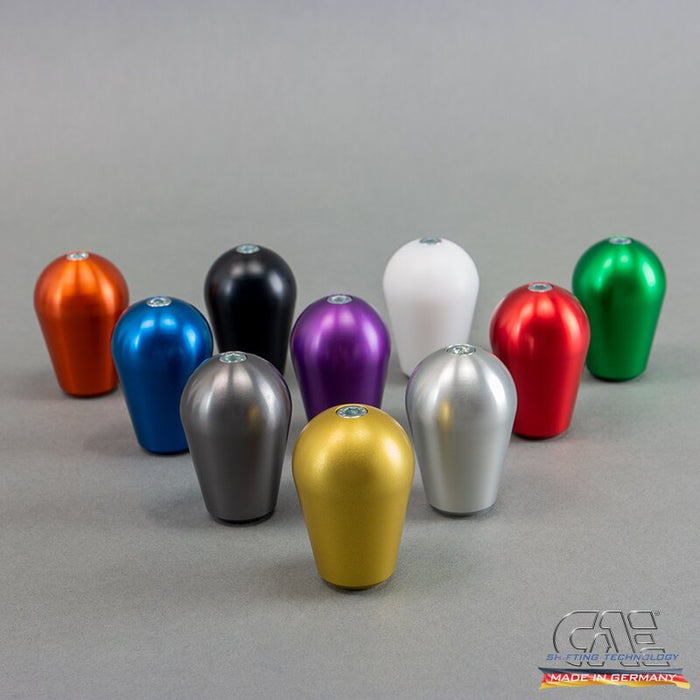

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam
-
This shifter has no reverse gear lock.
Total height: | approx. 400 mm |
Total length: | approx. 180 mm |
Dimensions of base plate: | approx. 150 x 125 mm |
Shifting travel: | approx. 65 mm |
Selector travel (transverse direction): | approx. 65 mm |
Weight (complete): | approx. 1,05 kg |
Offset of the gear lever knop (back / up): | approx. 50 / 170 mm |

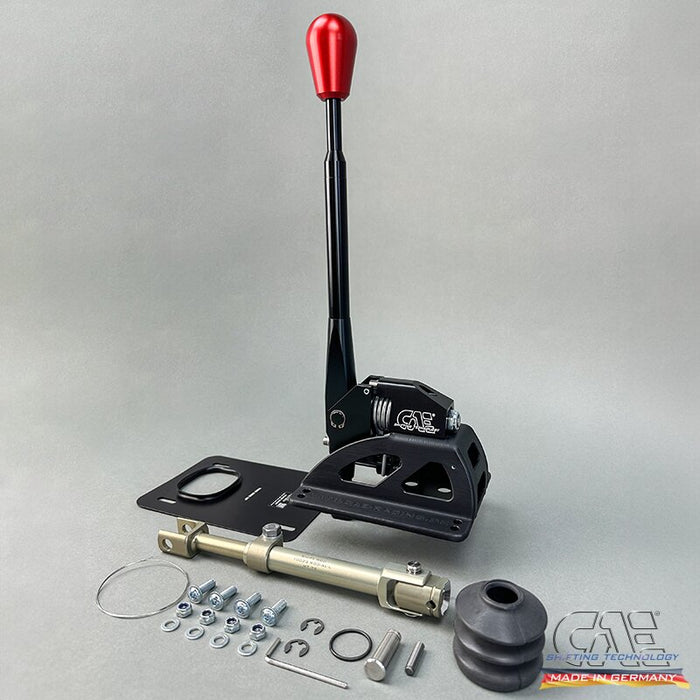

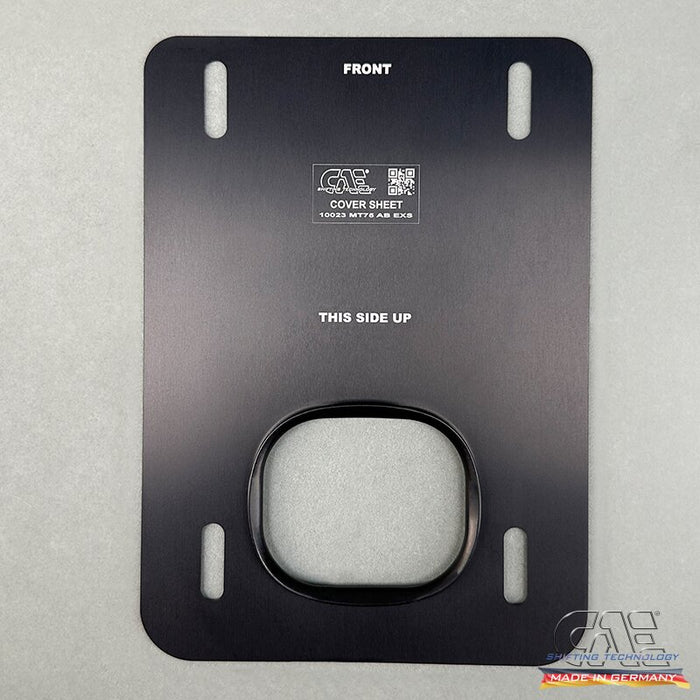

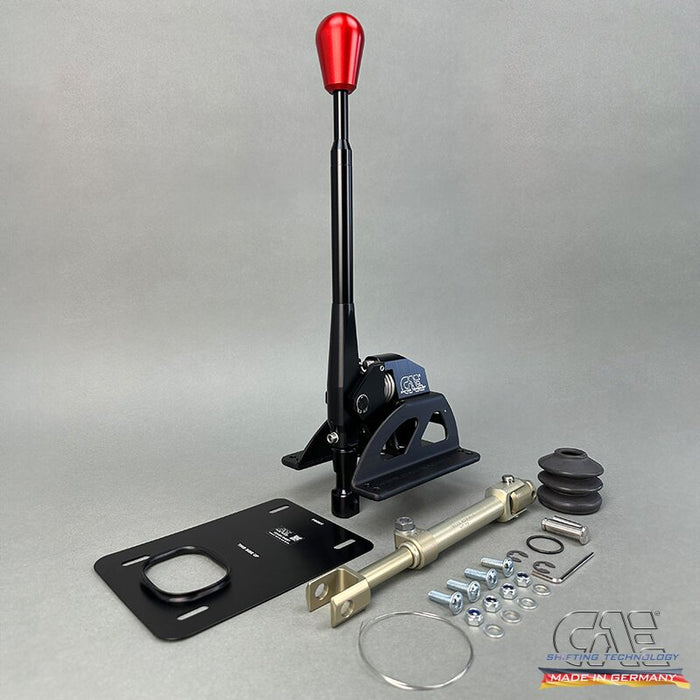

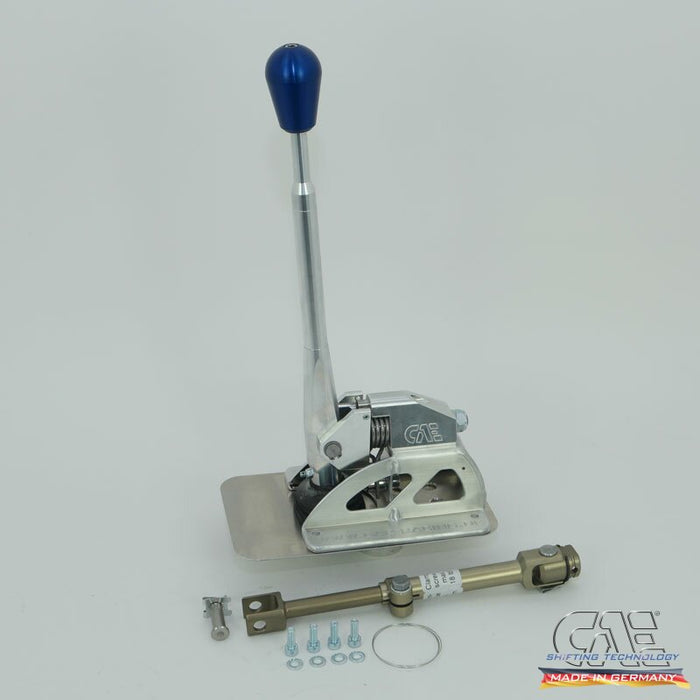

Delivery: Shifter completely assembled, CAE adjustable Aluminium Rod, Cover Sheet with rubber boot, fastening screws.
