CAE Ultra Shifter Audi B4 w. 5 speed 01A Gearbox
by CAE
Original price
$1,280.00
-
Original price
$1,280.00
Original price
$1,280.00
$1,280.00
-
$1,280.00
Current price
$1,280.00
Description

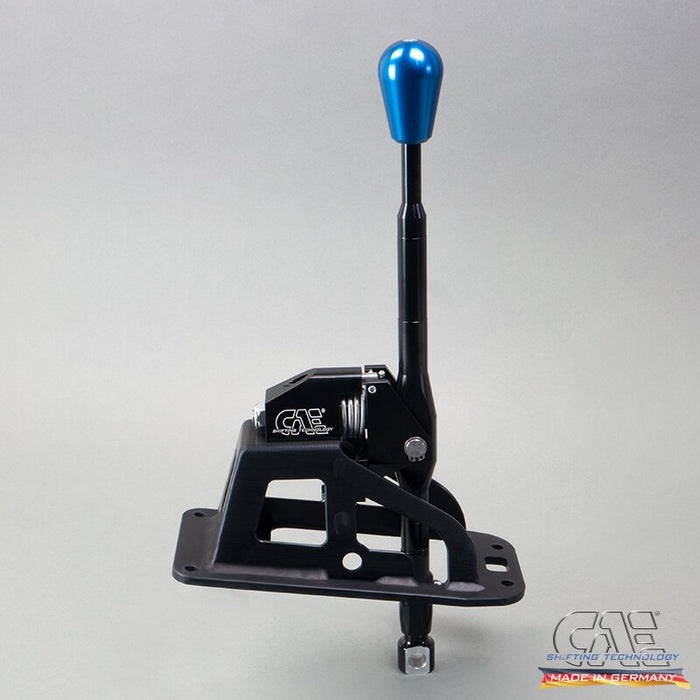

CAE Ultra Shifter for Audi B4 with 01A 5 Speed Gearbox Rod Shifted
CAE Ultra Shifter - Optimised for motor sports with the following features:
- CAE Ultra Shifter for Audi B4 for vehicles with a Audi 01A 5 Speed Rod-Gearbox

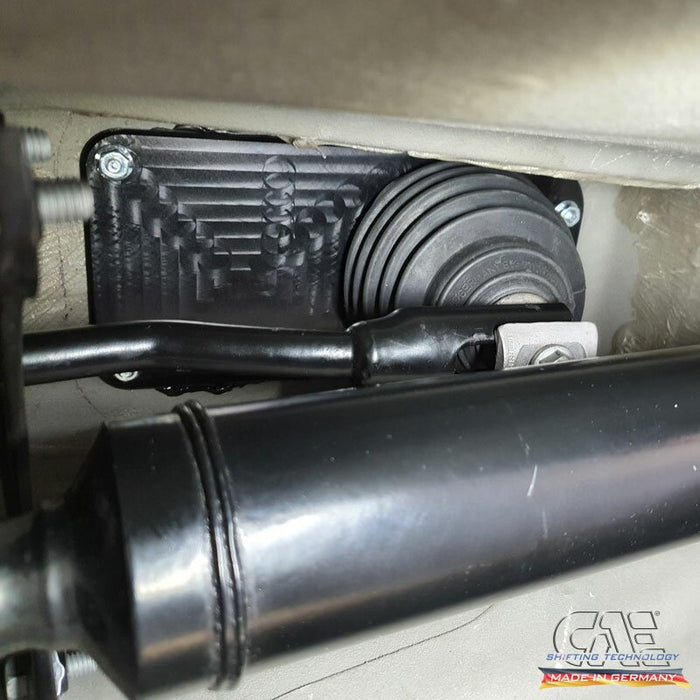

- Shifter to use the original Audi shift rod, this is not included
- Short and super-precise shifting travel, exclusively H-pattern.
- The clutch system remains in its original form.

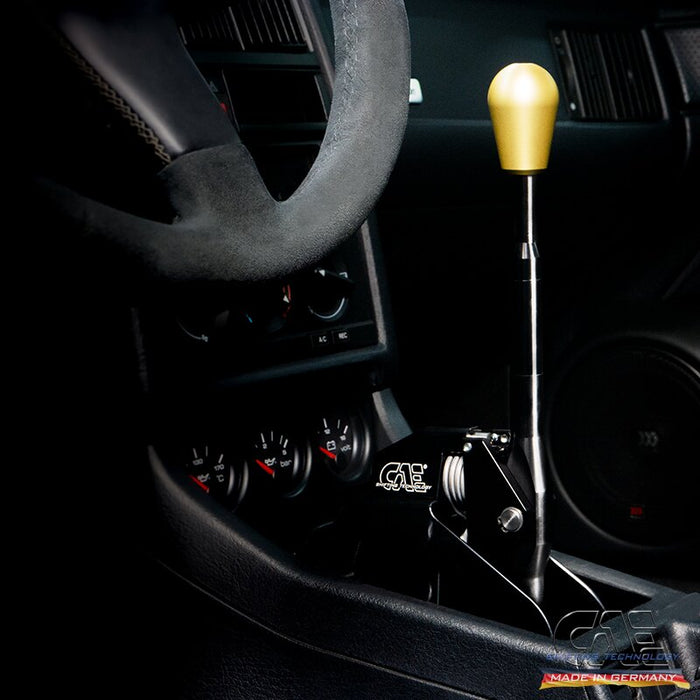

- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: All systems are delivered with all small parts and fastening material.

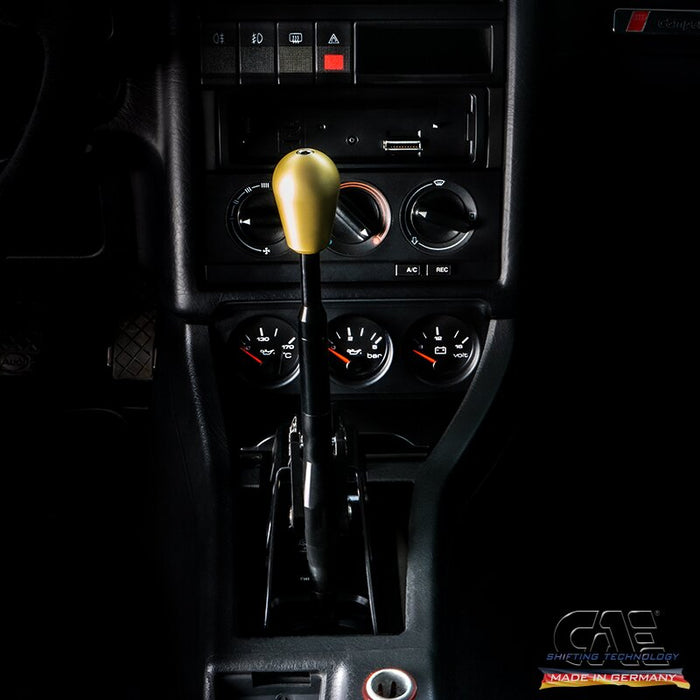

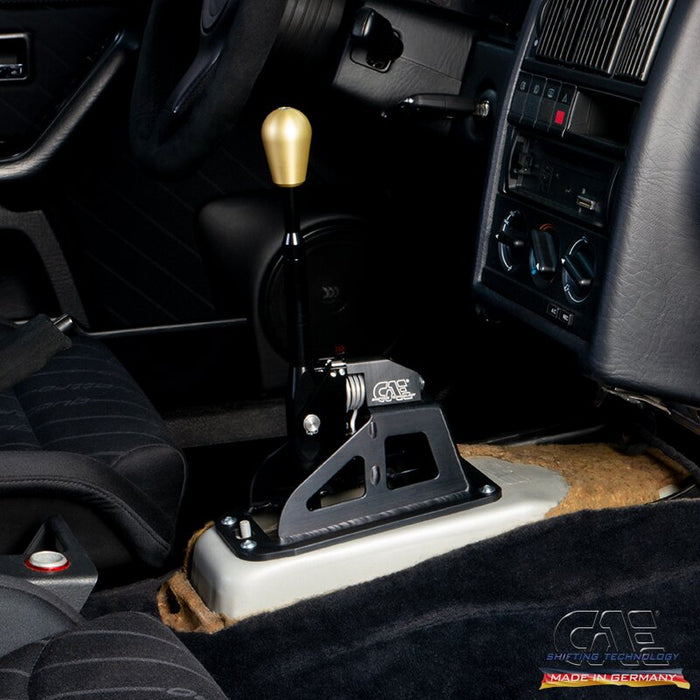

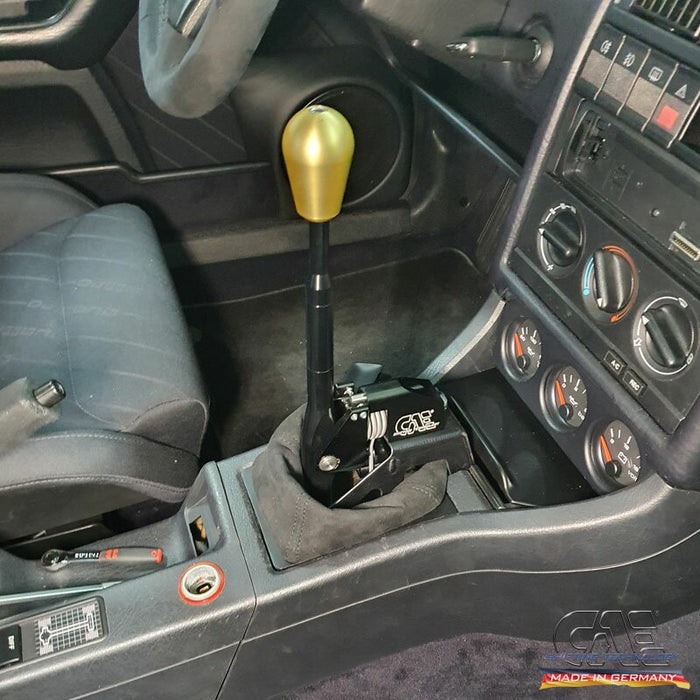

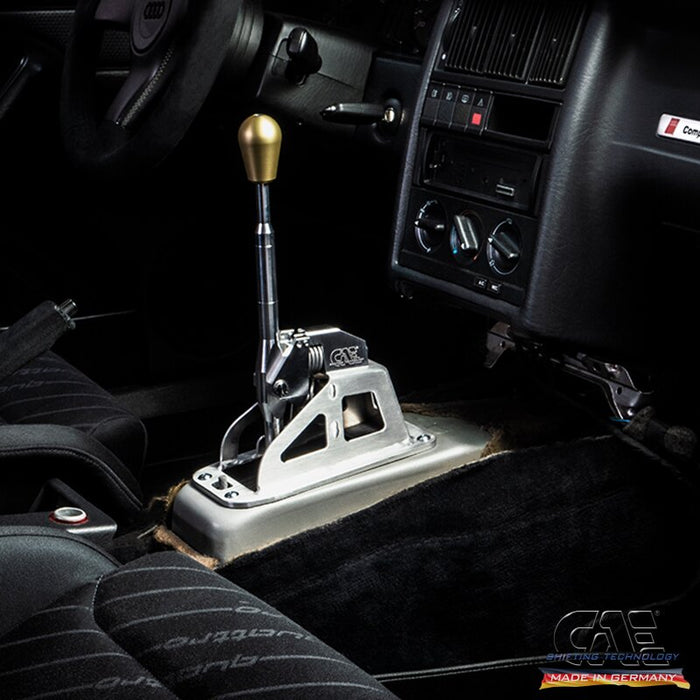

- Shifter is mounted on the center tunnel and is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.
-

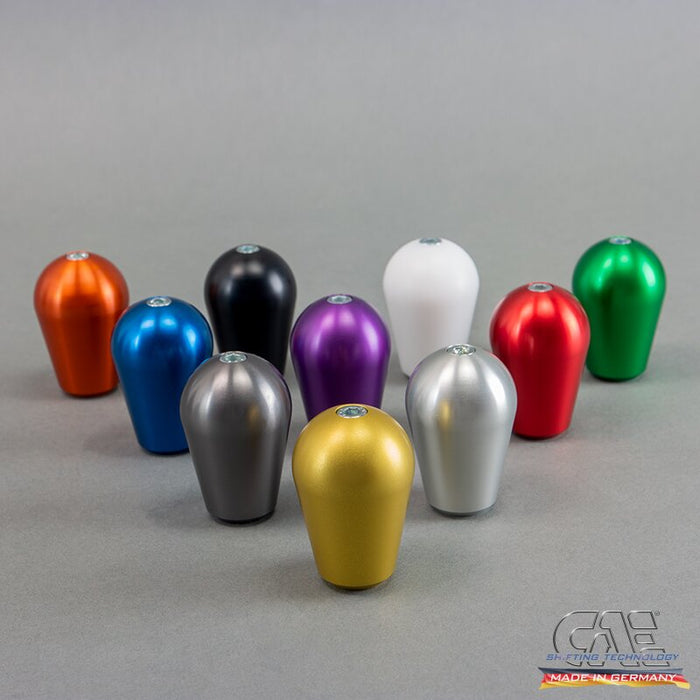

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam
| Total height: | approx. 380 mm |
| Total length: | approx. 250 mm |
| Dimensions of base plate: | approx. stock |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 1,4 kg |
| Offset of the gear lever knop (back / up): | approx. 60 / 130 mm |

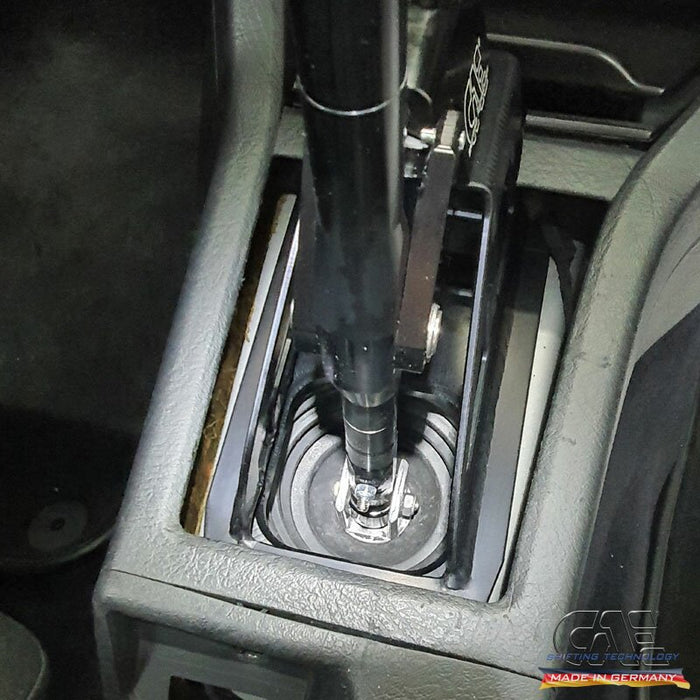

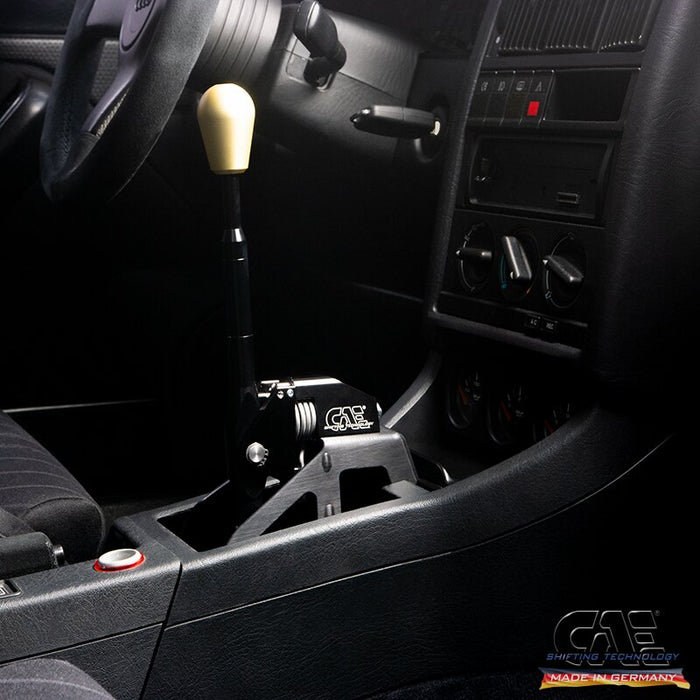

No Bodywork necessary, Center console have to be cut out for enought space
Delivery:

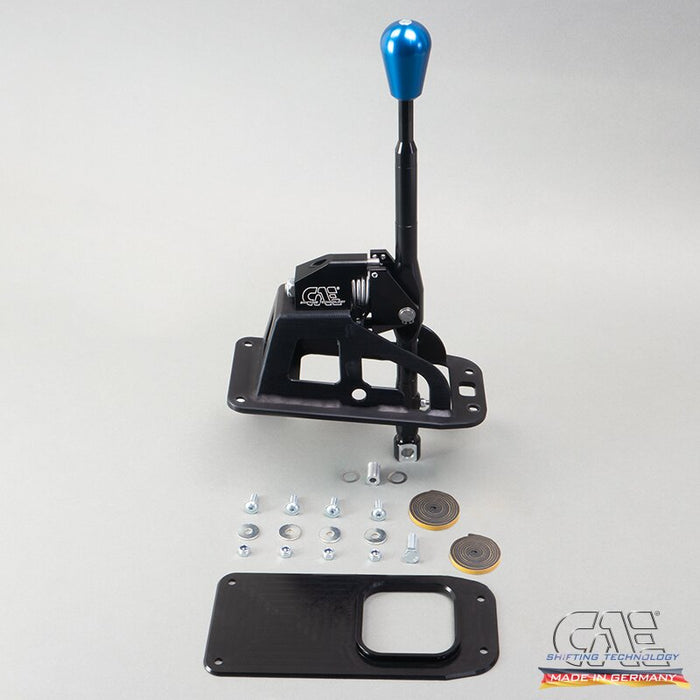

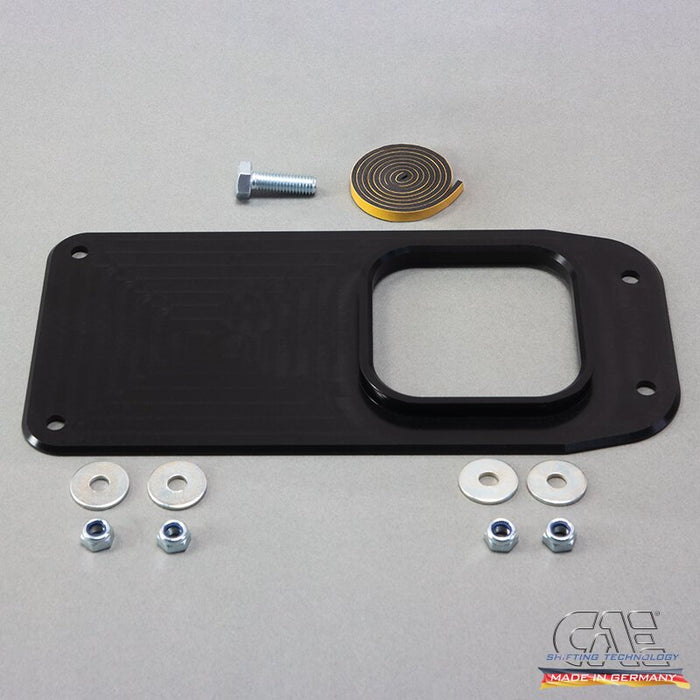

Shifter completely assembled, cover Sheet, all required screws and small parts
installation instructions is in preparation
