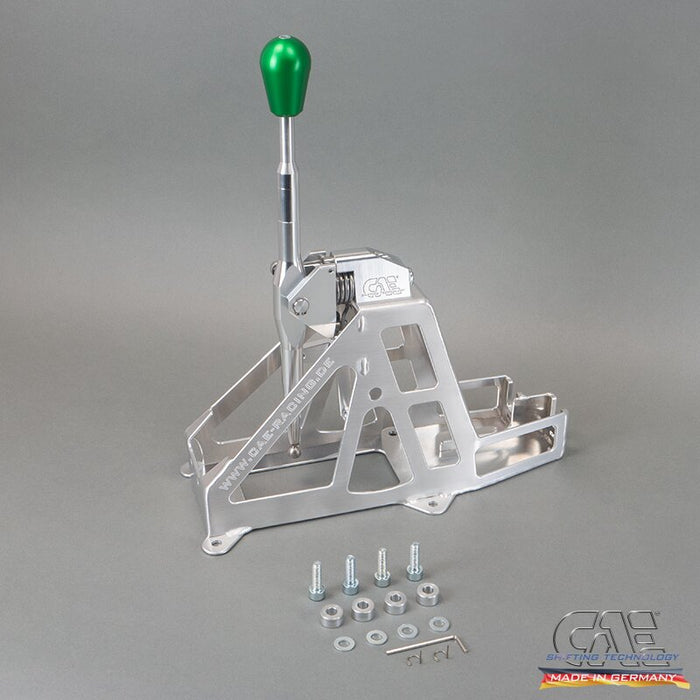

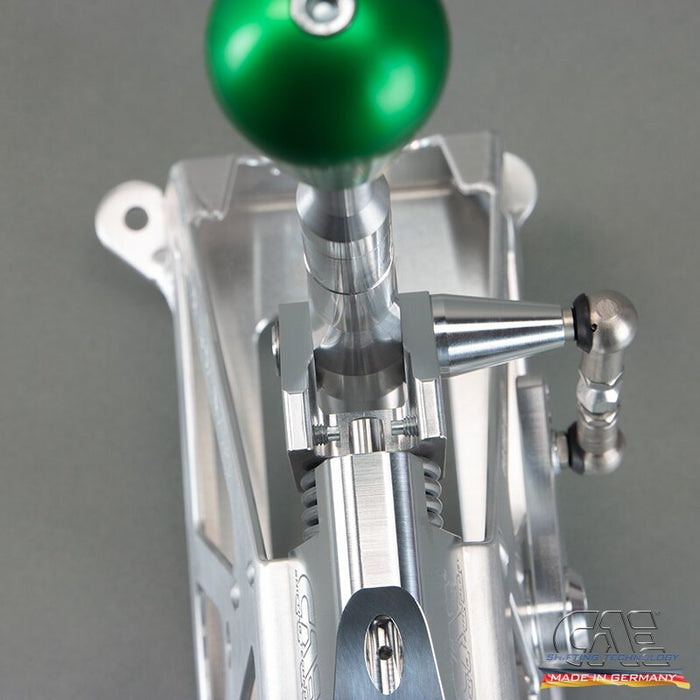

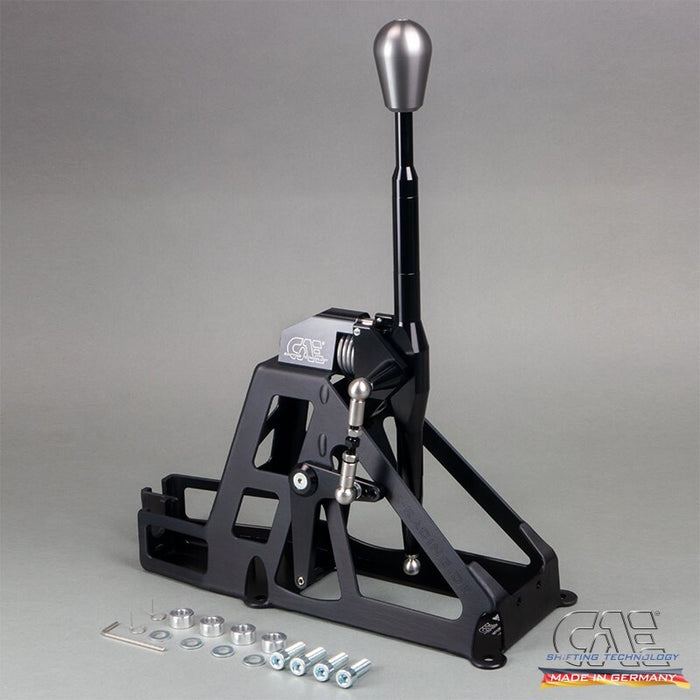

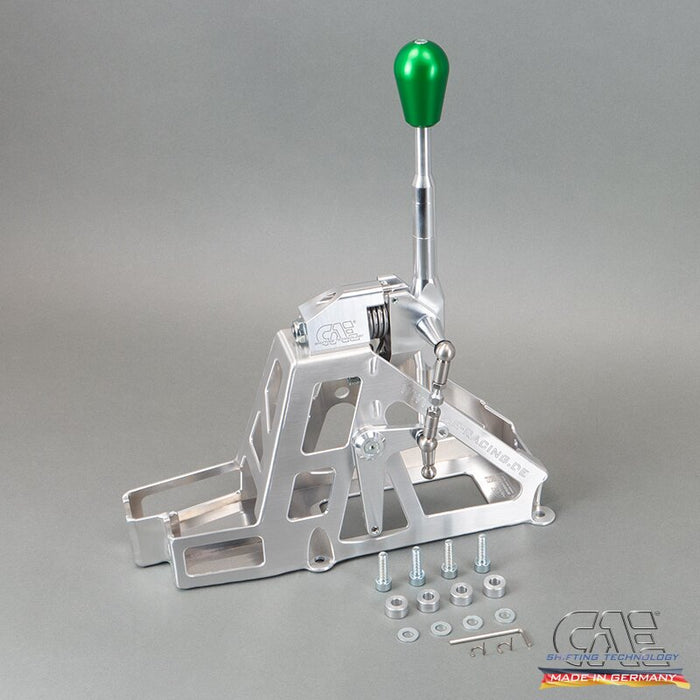

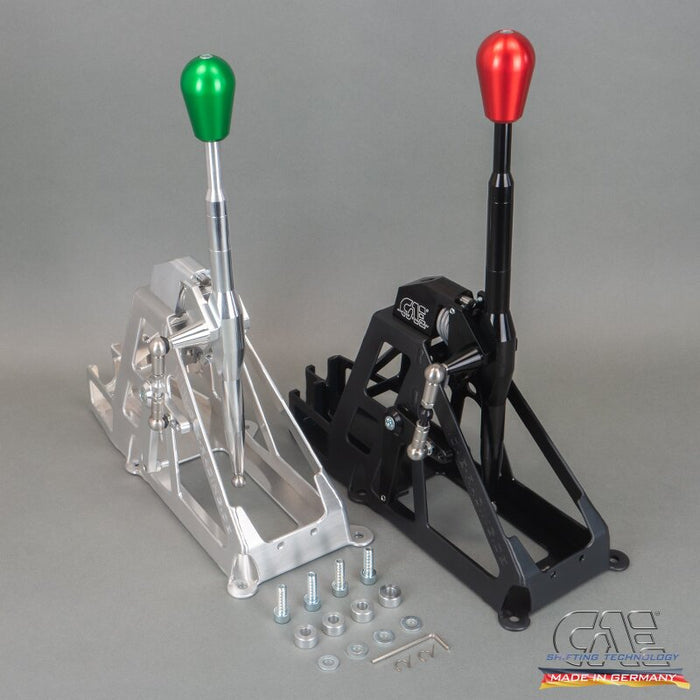

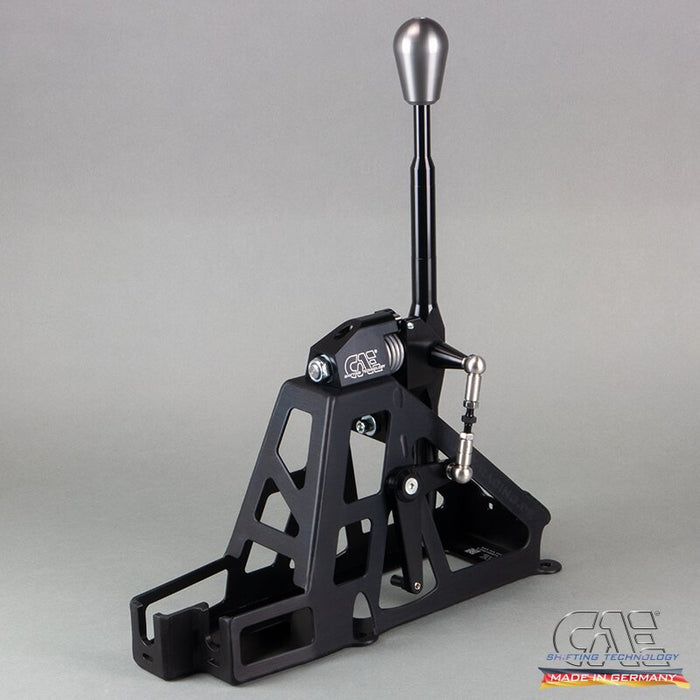

CAE Shifter Mitsubishi Lancer EVO 10
Description
CAE Shifter - Optimised for motor sports with the following features:
- CAE Shifter for Mitsubishi Lancer EVO 10 with 5 Speed Gearboxes for use with the original gearshift cables. NOT FOR 6 SPEED
This shifter type uses the serial reverse gear lock in the transmission (no mechanics on the shift lever). - Short and super-precise shifting travel, exclusively H-pattern.
- The coupling system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.

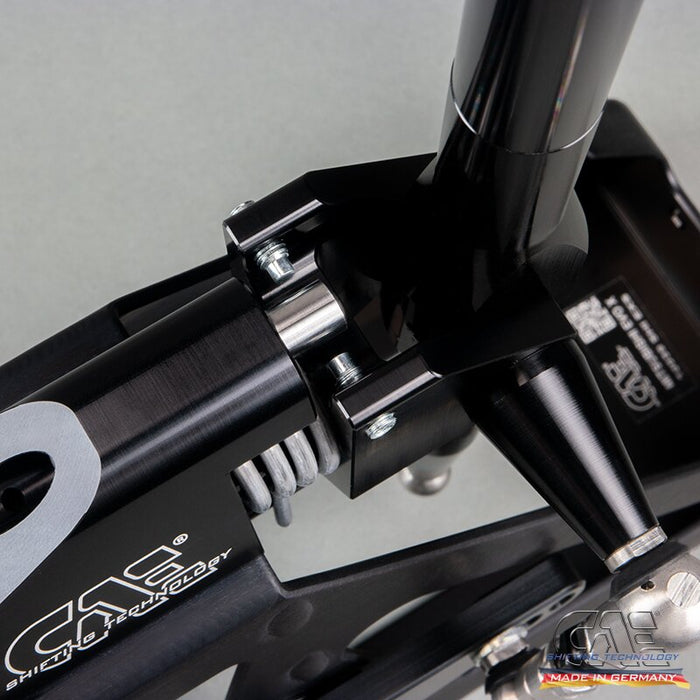

- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.
- Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.
-

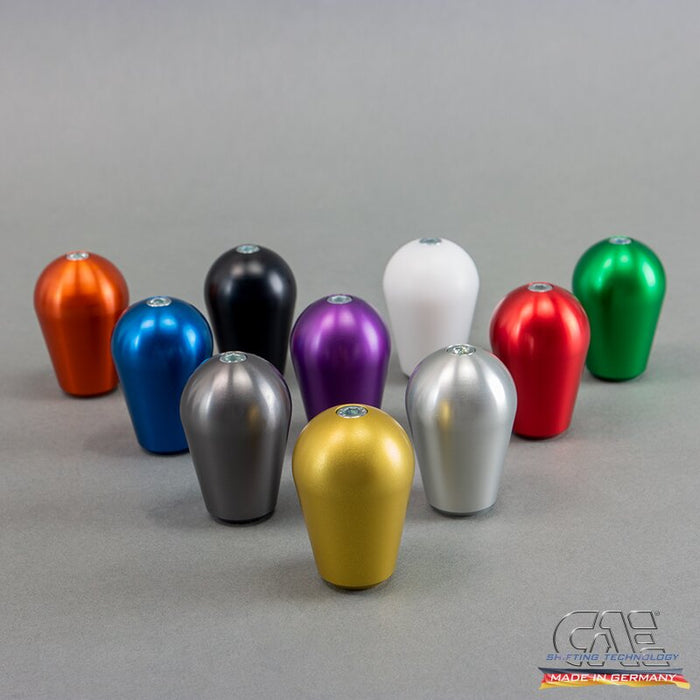

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 425 mm |
| Total length: | approx. 345 mm |
| Dimensions of base plate: | approx. 345 x 135 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 1,35 kg |
| Offset of the gear lever knop (back / up): | approx. 70 / 120 mm |
Delivery: Shifter completely assembled, small parts.
