CAE Shifter Audi 80/90 Typ B4
Description

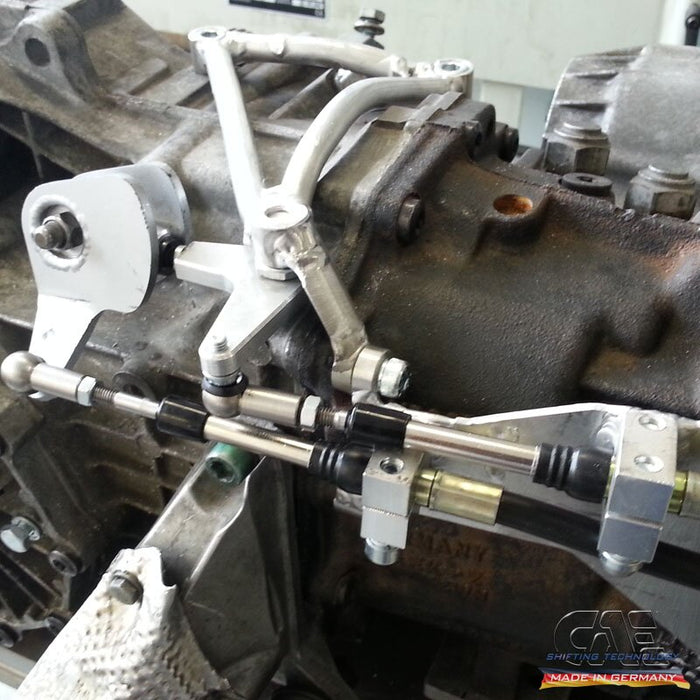

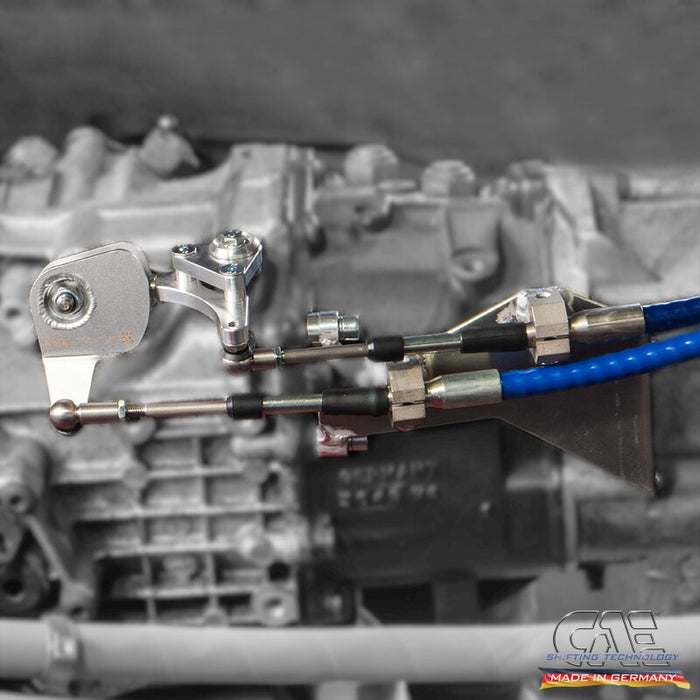

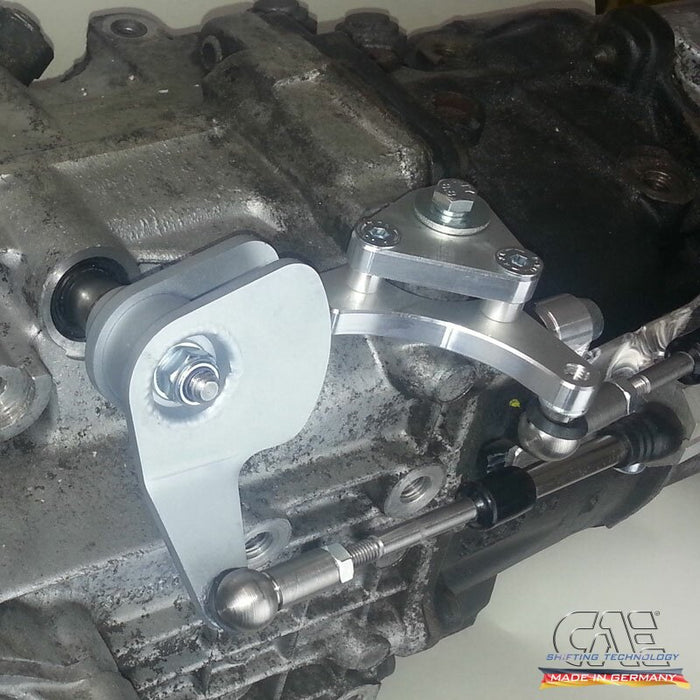

CAE Ultra Shifter for Audi 80/90 type B4 witi 01E Rod Shifted Gearbox Modification to cable shift

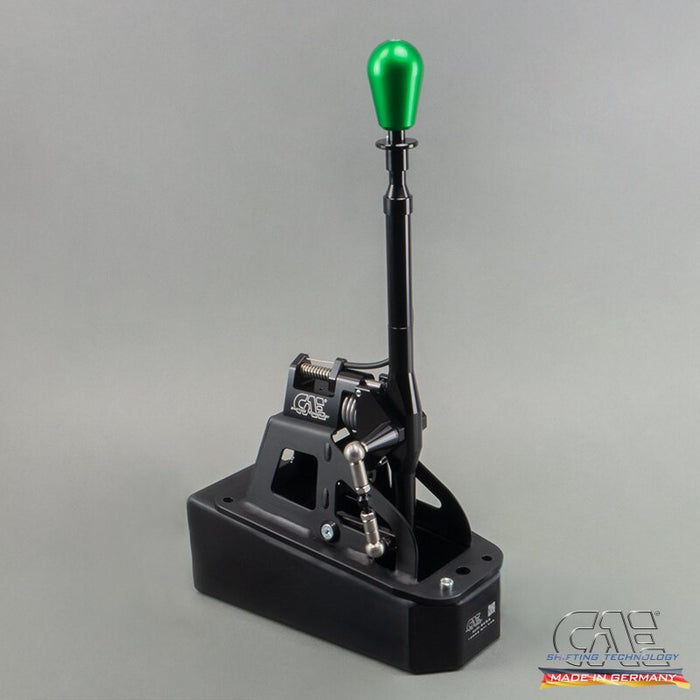

CAE Ultra Shifter - Optimised for motor sports with the following features:
- CAE Ultra Shifter for all Áudi 80-90 ff Typ B4 for vehicles equipped with a Audi 01E Rod-Gearbox Modification to cable shift
- Short and super-precise shifting travel, exclusively H-pattern.
- The coupling system remains in its original form.
- Racing-style appearance.

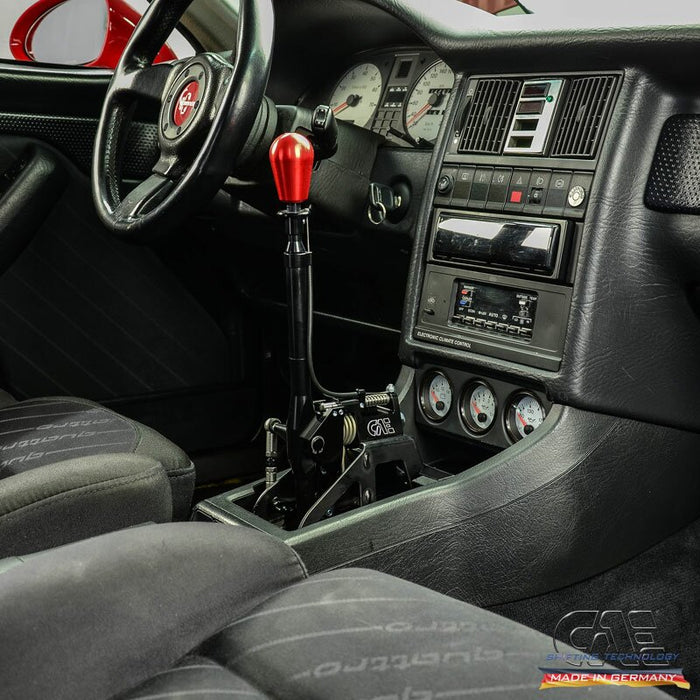

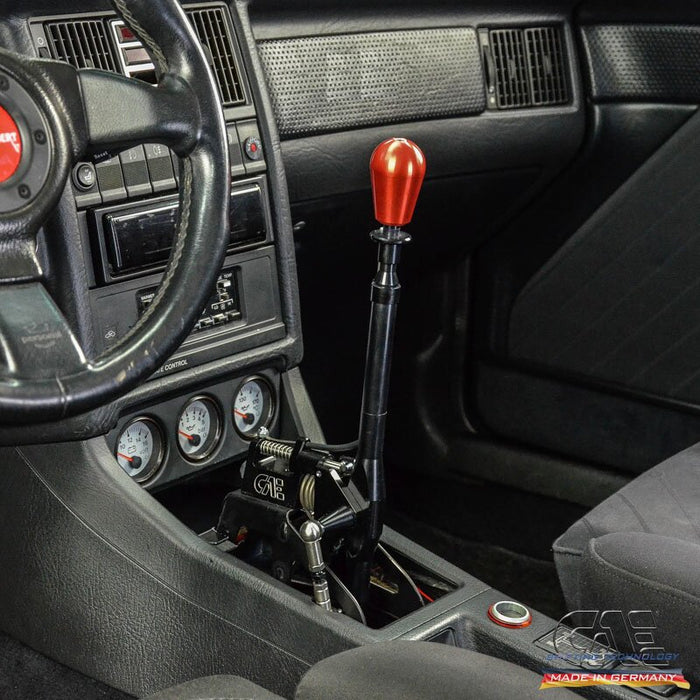

- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.

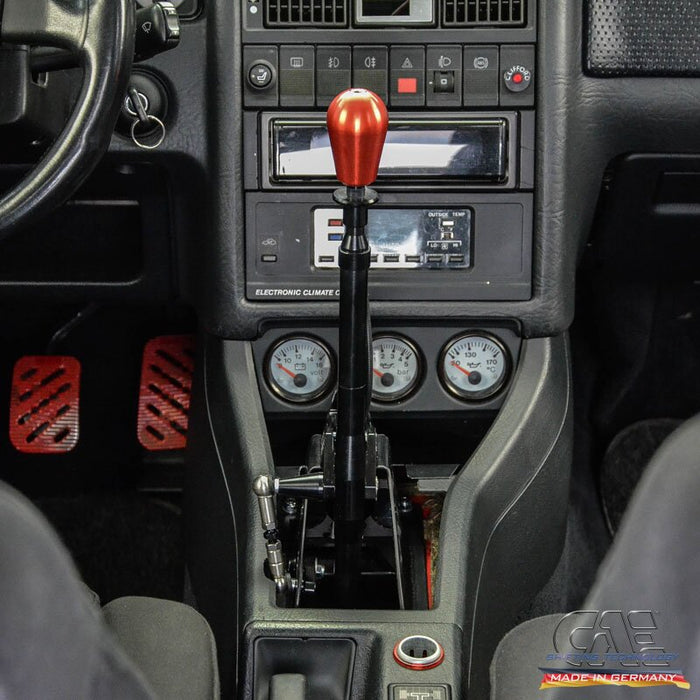

- Shifter is mounted on the center tunnel and is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.
-

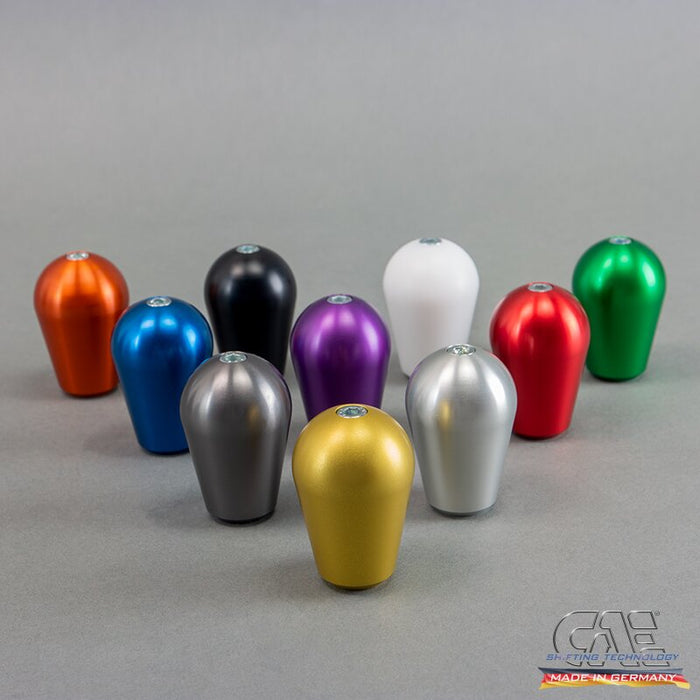

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam
| Total height: | approx. 380 mm |
| Total length: | approx. 250 mm |
| Dimensions of base plate: | approx. stock |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 3,9 kg |
| Offset of the gear lever knop (back / up): | approx. 60 / 130 mm |
No Bodywork necessary, Center console have to be cut out for enought space

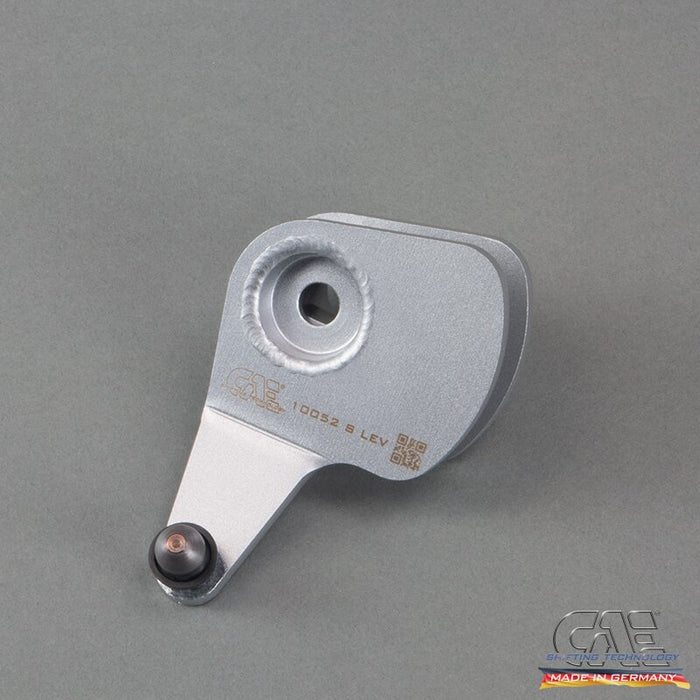

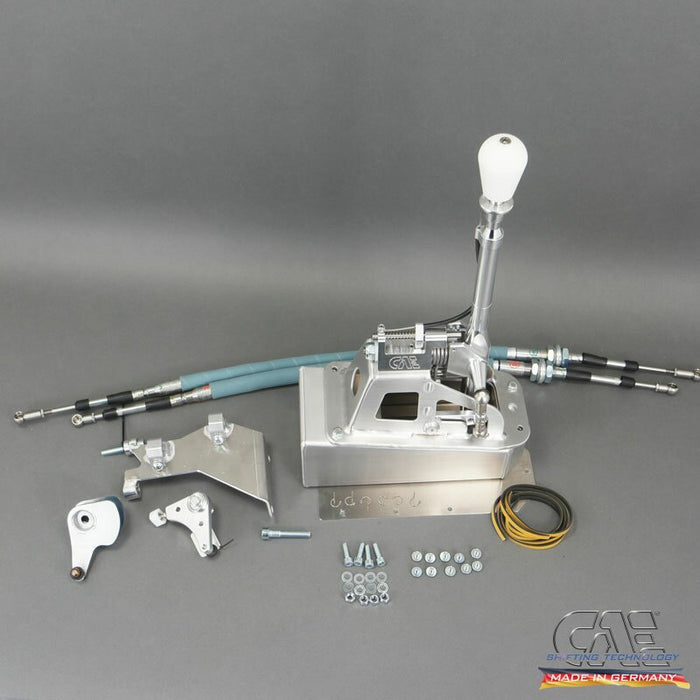

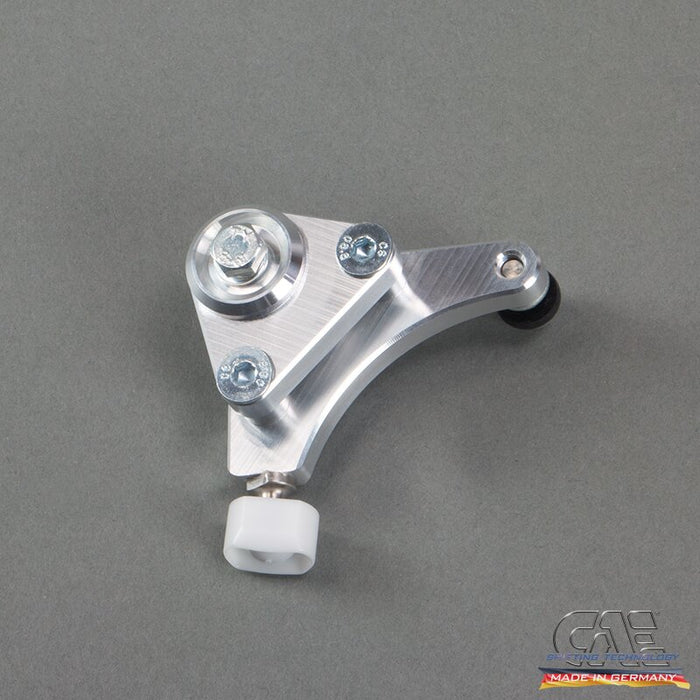

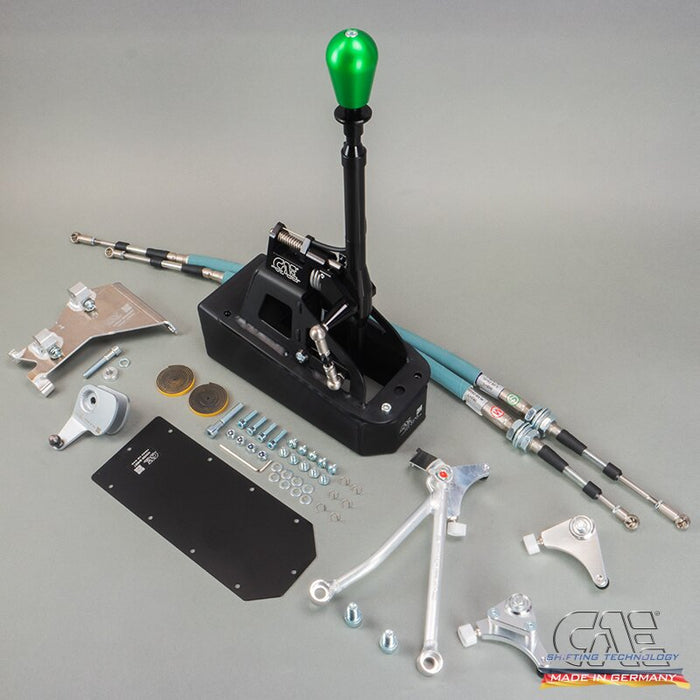

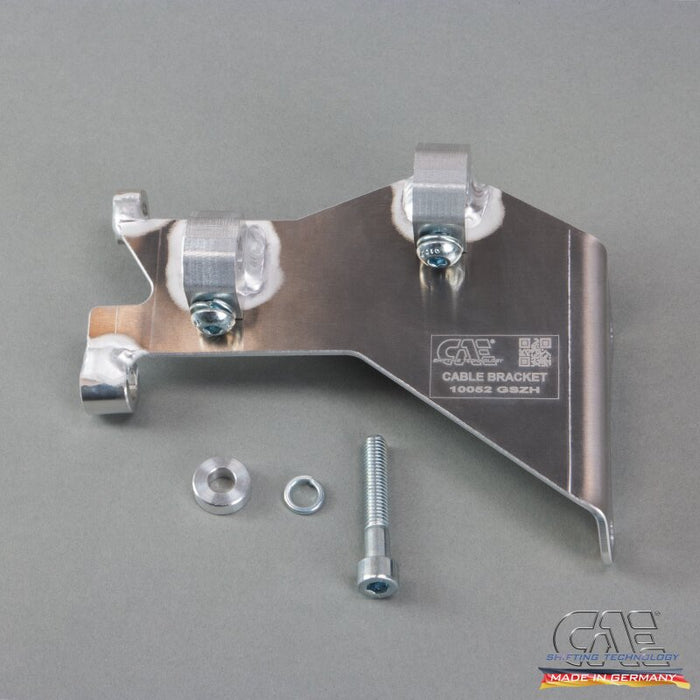

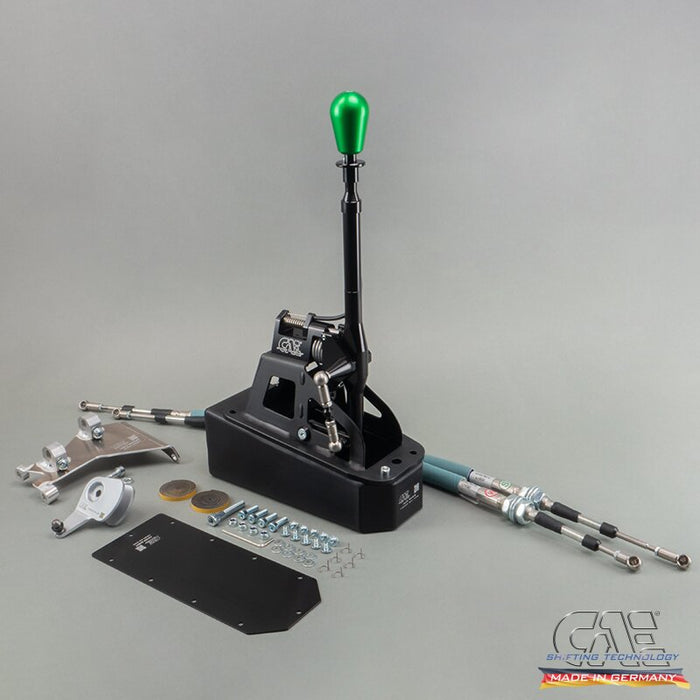

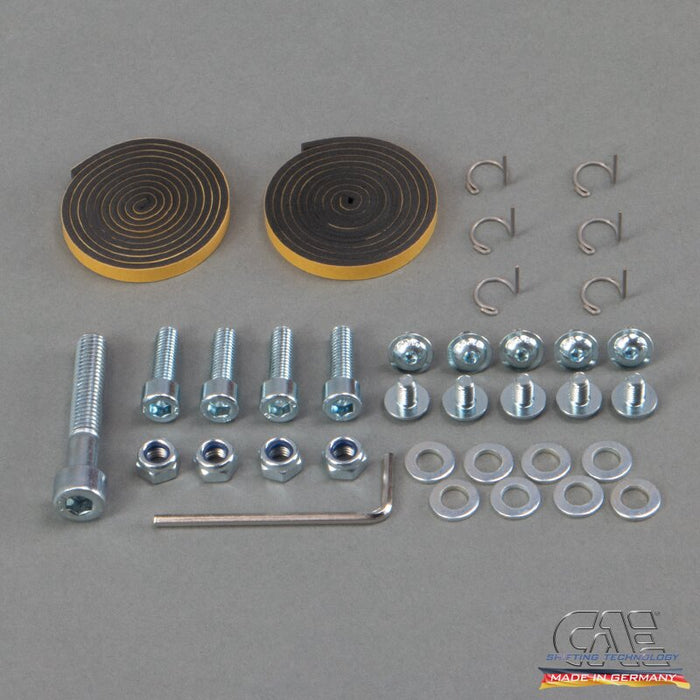

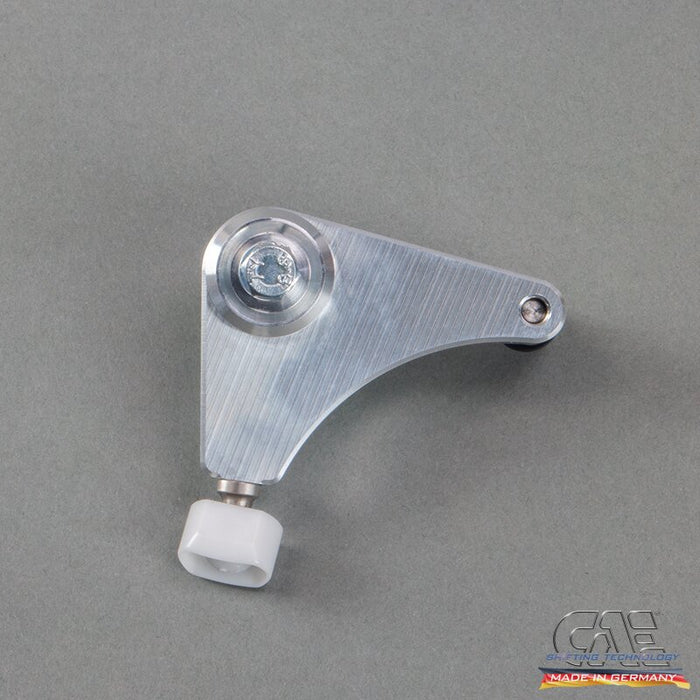

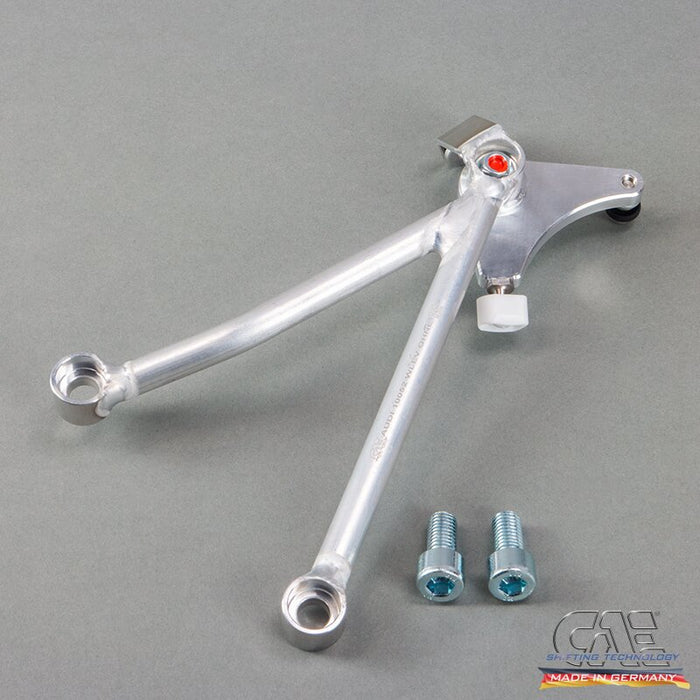

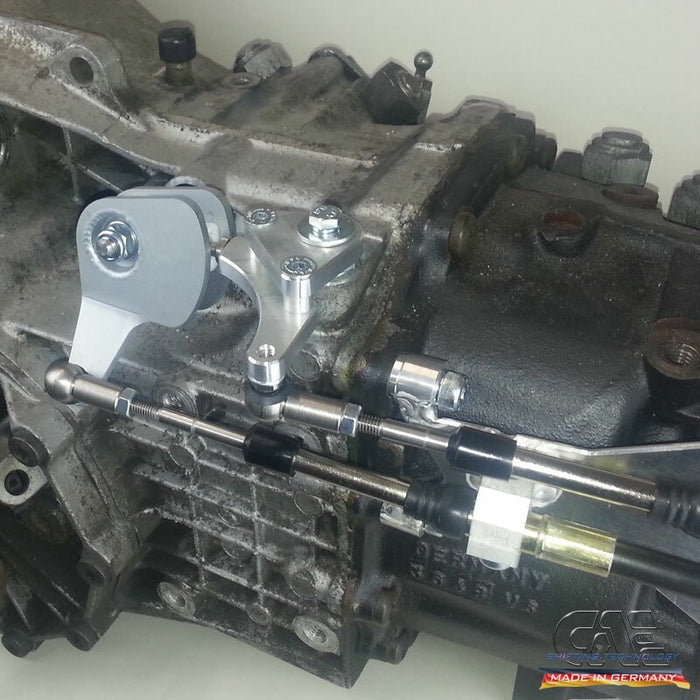

Delivery: Shift-Unit top partcompletely assembled, Shift-Unit lover part , CAE HD gearshift cable, CAE Gearlevers, Gear-cable bracket, all screws and small parts
installation instructions here for download
ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
If you would like to have your Shifter with german TÜV Papers, please contact us in parallel with the purchase
